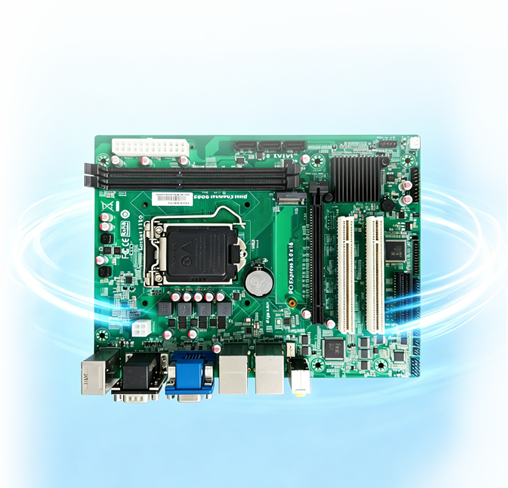

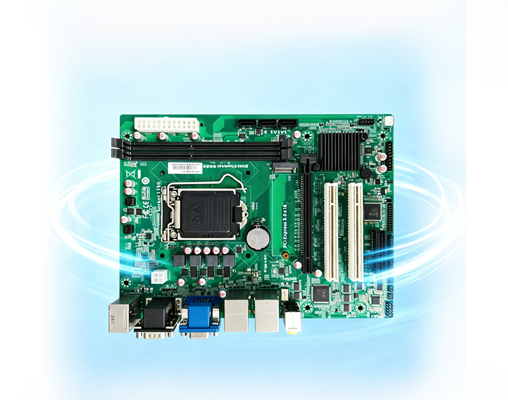

B85 motherboard

  • LGA1150 (4th Gen)
  • 2 DDR3 memory slots
  • HDMI + VGA
  • Dual Ethernet ports
  • 6 USB ports
  • 6 serial ports
  • Audio supported
  • P/2 supported
  • PCIe x16
  • 2 PCI slots
  • PCIe x4
  • 185mm x 238mm

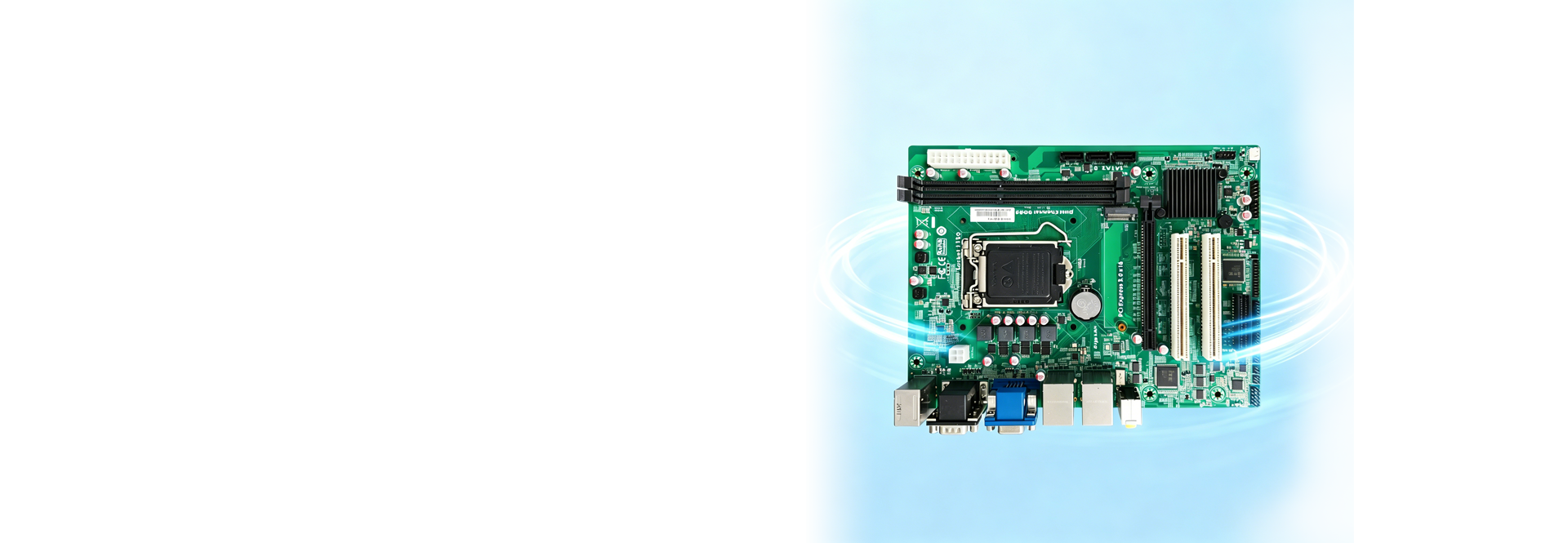

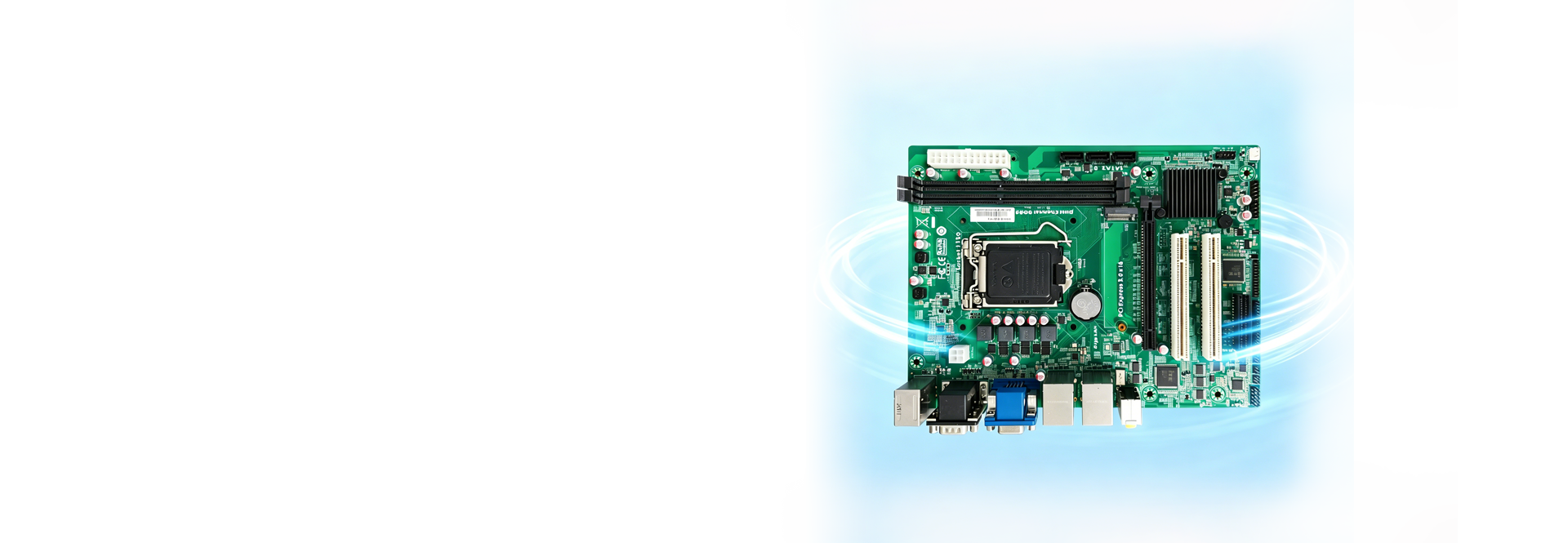

B85 motherboard

Product Features

  • LGA1150 4th
  • DDR3 memory
  • M.2 hard drive
  • HDMI + VGA
  • 2LAN
  • 10USB
  • PCIE+PCI
  • win7/10 Linux

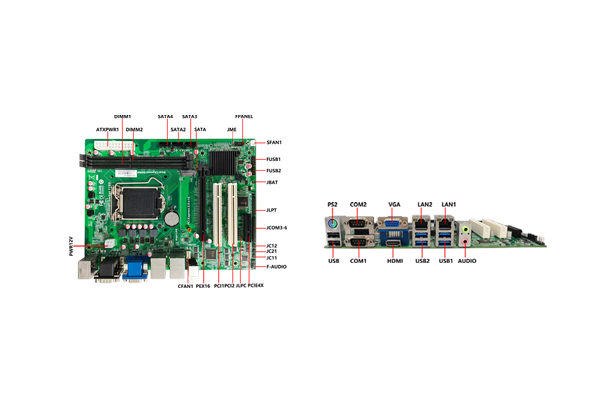

Product Details Display

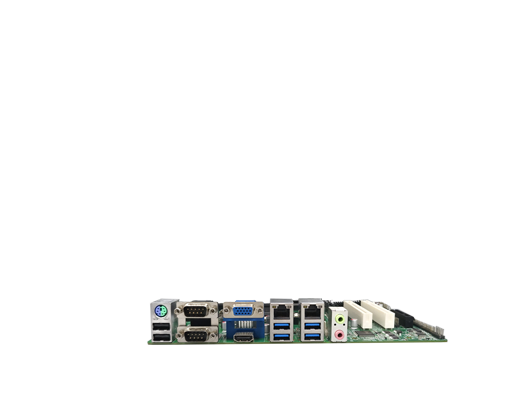

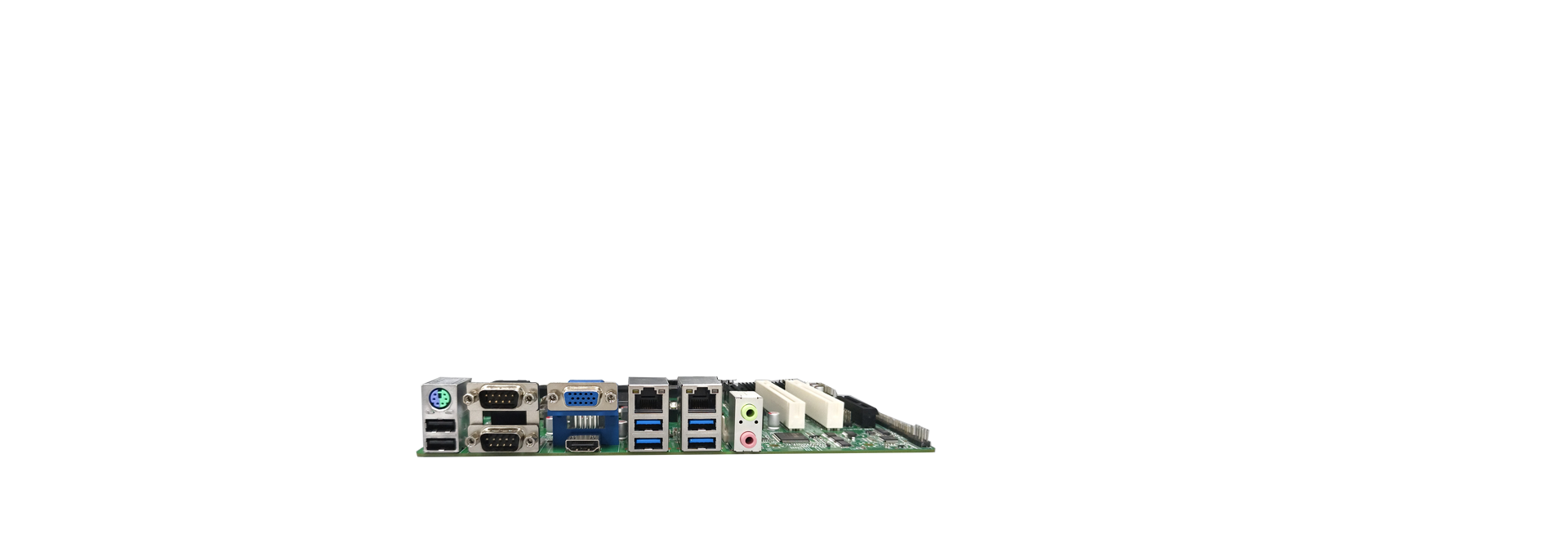

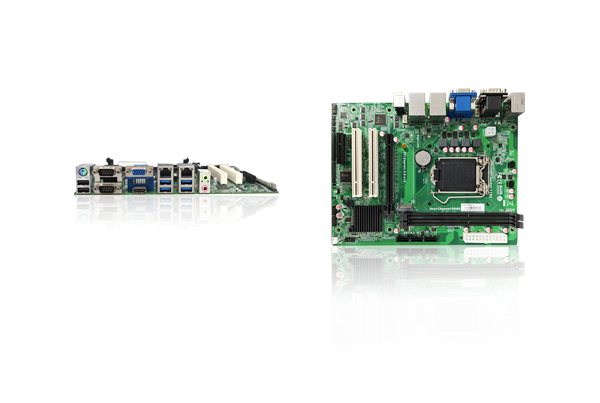

Rich peripheral interfaces, dual-display supported via VGA/HDMI

Onboard 10USB ports, 6 serial ports, dual network ports, PCIe x16, PCIe x4 and dual PCI expansion slots

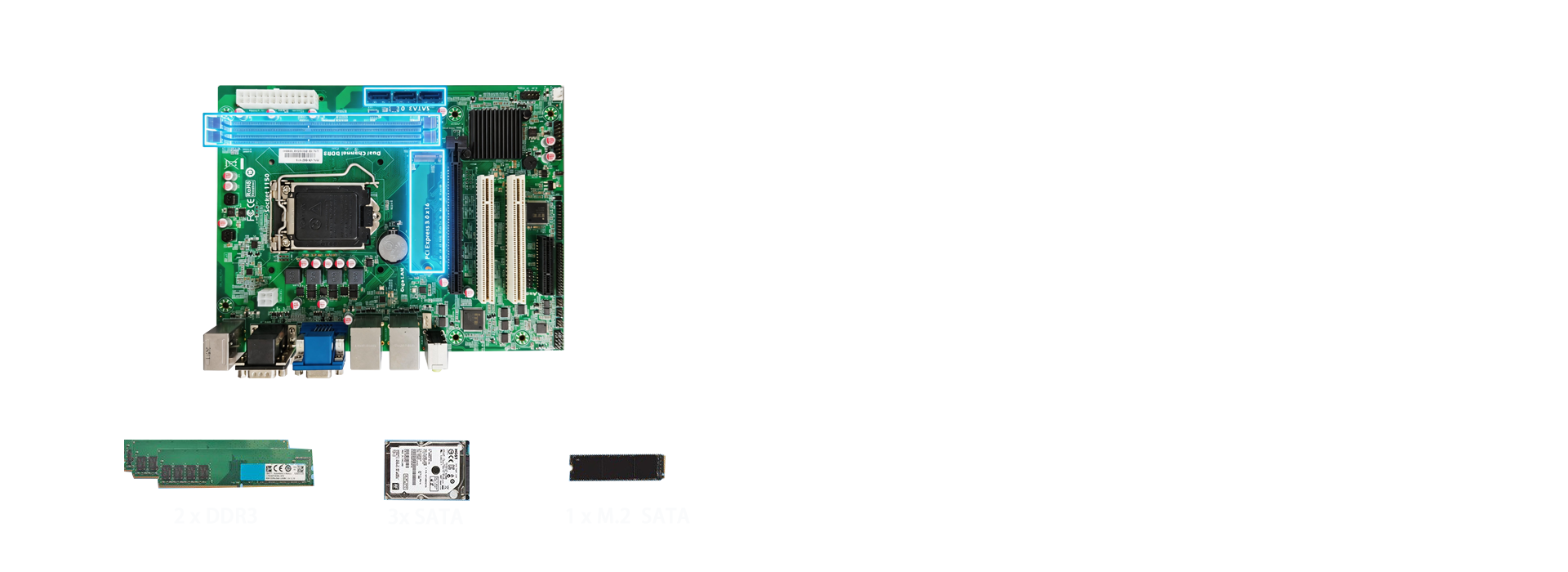

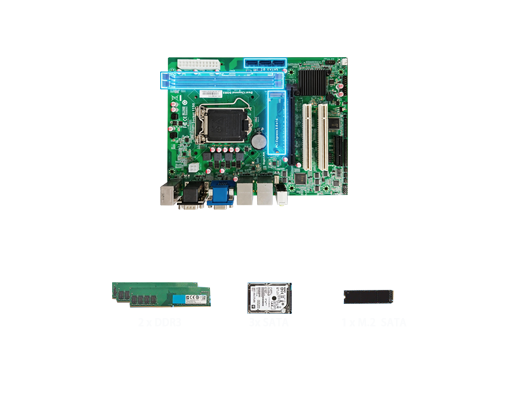

Powerful Configuration, Meet Diverse Demands

Flexible hardware architecture. Adopts dual-channel DDR3 memory slots, supporting 2 DDR3 modules with maximum 16GB capacity. Delivers enhanced powerful performance, plug-and-play without complicated debugging.

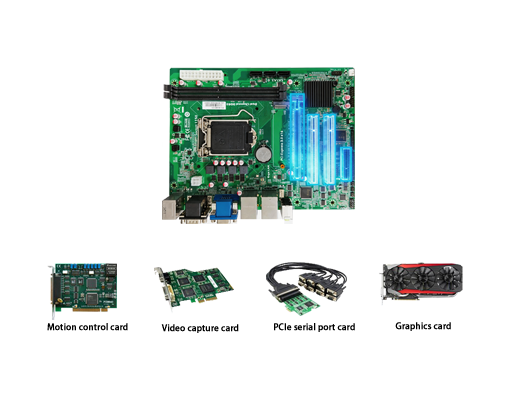

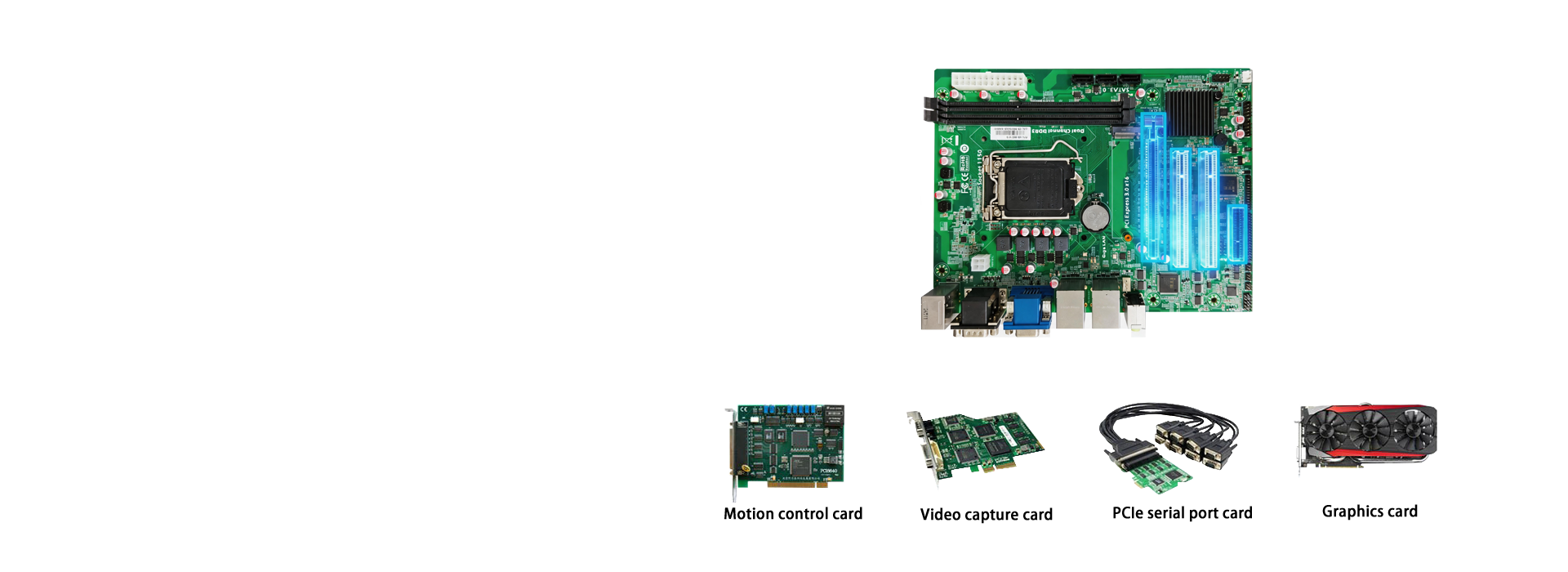

Multiple expansion slots, flexible expansion

1 standard PCIe x16 slot, 1 standard PCIe x4 slot and 2 standard PCI slots

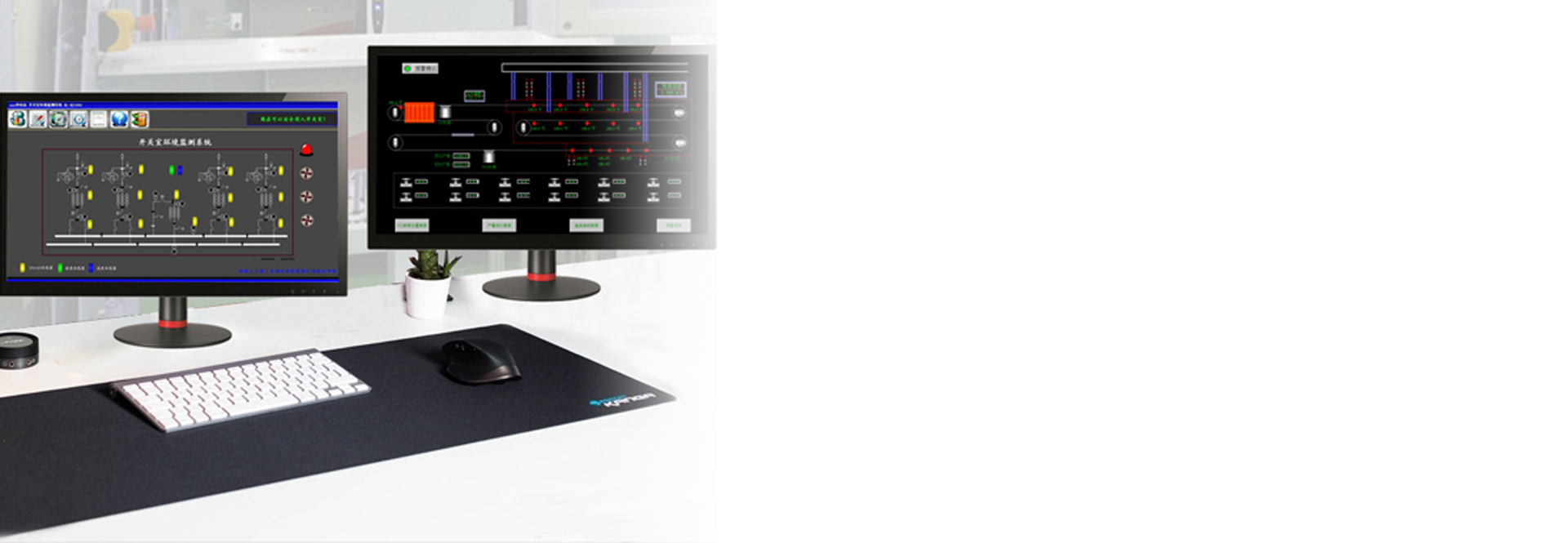

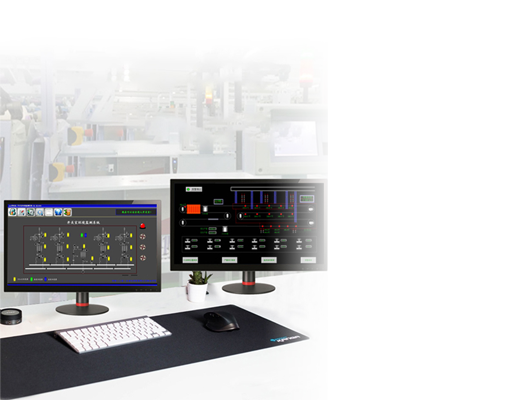

simultaneous & separate display

Onboard HDMI and VGA dual video outputs support dual-screen copy and extended display modes

Gigabit Ethernet port, high-speed transmission

Gigabit network transmission speed ensures fast and stable data transfer. It meets high network requirements of industrial IoT, cloud computing and other scenarios, delivering reliable network connection for devices.

Compatible with multiple systems

Supports mainstream systems including Win7, Win10 and Linux distributions, compatible with various configuration software. Contact customer service if you need a specific system installed.

Product specifications
  • English Translation

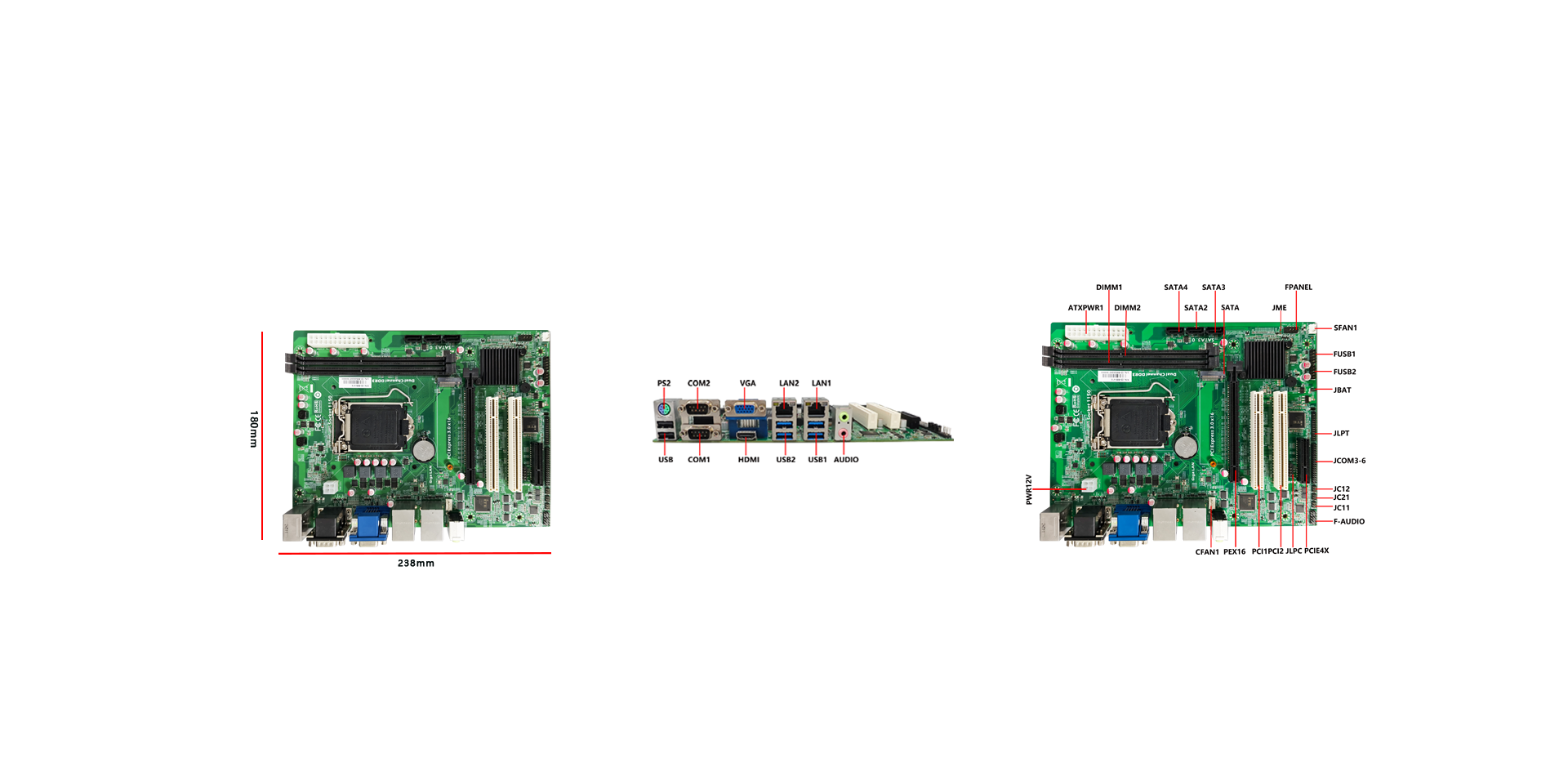

    Mainboard Size: 185mm (L) * 238mm (W)
    CPU Processor: LGA 1150 socket, compatible with 4th Gen Intel Core (Haswell/Haswell Refresh) processors
    Chipset: Q87 Chipset
    Power Supply
    • 1*24PIN ATX: Standard 24PIN ATX power input
    • 1*4PIN CPU IN: 4PIN CPU power input. Recommended power wattage shall be increased based on actual CPU power consumption and load quantity
    Memory Support: 2*DIMM DDR3 slots, max 16GB dual-channel memory capacity
    Display Function
    • 1VGA: Resolution up to 19201080@60Hz
    • 1*HDMI: Max resolution 1920×1200@60Hz
    Network Function: 2*LAN ports, RTL8111H Gigabit Ethernet controller
    Audio Function
    • Onboard ALC897 audio codec with decoding and encoding functions. Built-in DAC/ADC and digital processing module, converts digital signals to analog signals to meet HD Audio output requirements
    • 1*Audio port: Green audio output & pink microphone input
    • 1F_AUDIO header: Standard 9Pin audio pin header (25Pin, 2.54mm pitch)
    Storage Function
    • 3*SATA ports: Standard 7PIN SATA 2.0 interface, maximum transfer speed 3.0 Gbps
    • SSD2: Supports M.2 SATA protocol
    USB Function
    • 4*USB3.0 ports: 2 stacked blue USB3.0 ports
    • 2*USB2.0 ports: 1 stacked black USB2.0 port
    • 2FUSB headers: Onboard headers for external USB expansion (9Pin, 25Pin, 2.54mm pitch)
    PS2 Port: Compatible with keyboard and mouse
    Switch Header: 1JFP header for power switch, power LED, HDD LED and reset button (9Pin, 25Pin, 2.54mm pitch)
    Expansion Slots: 1PCIe x4 slot, 1PCIe x16 slot, 2*PCI slots
    Fan Interface
    • 1SFAN: 3Pin system fan header (13Pin, 2.54mm pitch)
    • 1*CAN: 4Pin smart speed-adjustable fan header with speed detection
    Serial Port: 6*COM ports compliant with RS232 protocol. COM1/COM2 are dual-layer DB9 ports supporting RS232 & RS485; COM3-COM6 adopt 2×18pin 2.0mm pin headers
    Other Pin Headers
    • JME: Maintenance and security control header for ME firmware
    • JBAT: Clear CMOS settings via short circuit
    • JLPC: Low-level debug interface for LPC bus
    • JLPT: Compliant with IEEE 1284 parallel port standard, expands LPT interface for old dot-matrix/inkjet printers, industrial devices and programmers
    Operating Environment
    Operating Temperature: 0℃~60℃
    Operating Humidity: 5%~95% RH, non-condensing
    BIOS Model: W25Q64JV
    Watch Dog: Programmable watchdog with hardware reset (256 levels, 0~255s). Supports power-on boot and timed boot
    Operating System: Supports Windows 10, Windows 7 and Linux
