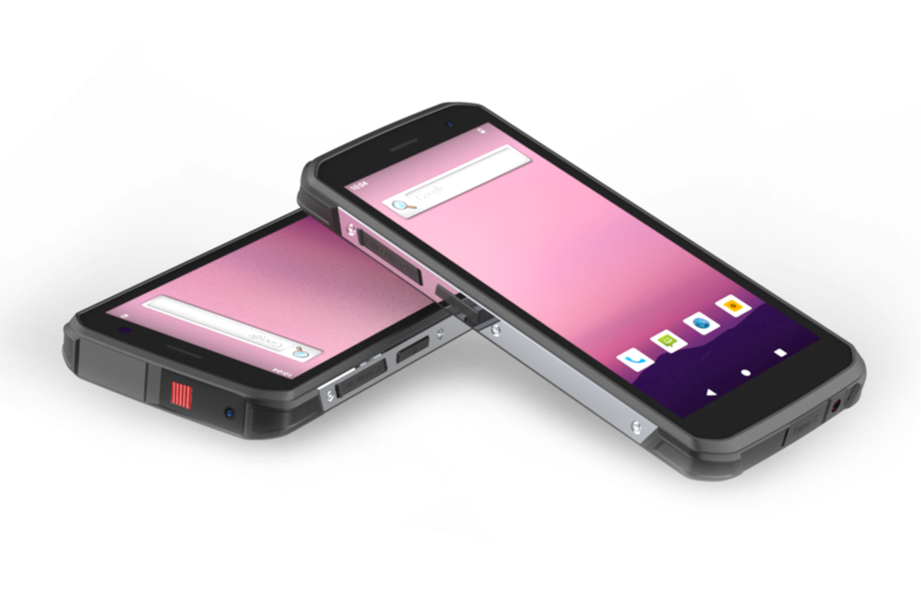

Industrial Touch Mobile Computer

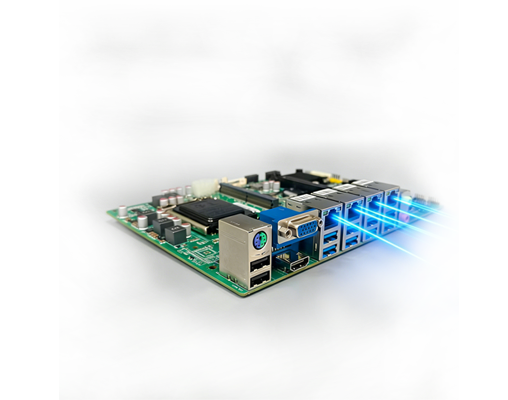

B360 Motherboard

·LGA1151 socket, compatible with 8th/9th Gen CPU
·DDR4 memory
  • ·HDMI+VGA+LVDS
  • ·10 USB ports
  • ·6 serial ports
  • ·4 network ports
  • ·Support power-on after power failure

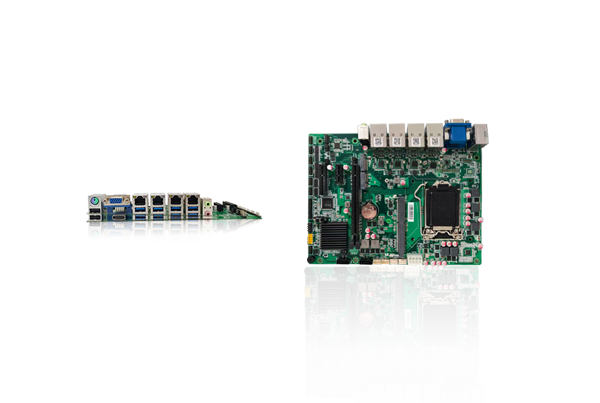

B360 Motherboard

Product Features

  • LGA1151 8/9th
  • DDR4 memory
  • M.2 SATA/NVME
  • HDMI/VGA/LVDS
  • 4LAN
  • 10USB
  • PCIE
  • Win10/Win11/LINUX

Product Details Display

Rich peripheral interfaces including VGA, LVDS and HDMI, supporting triple display.

Onboard 10 USB ports, 6 serial ports, 4 network ports, PCIe x16, PCIe x4 and PCIe x1 slots.

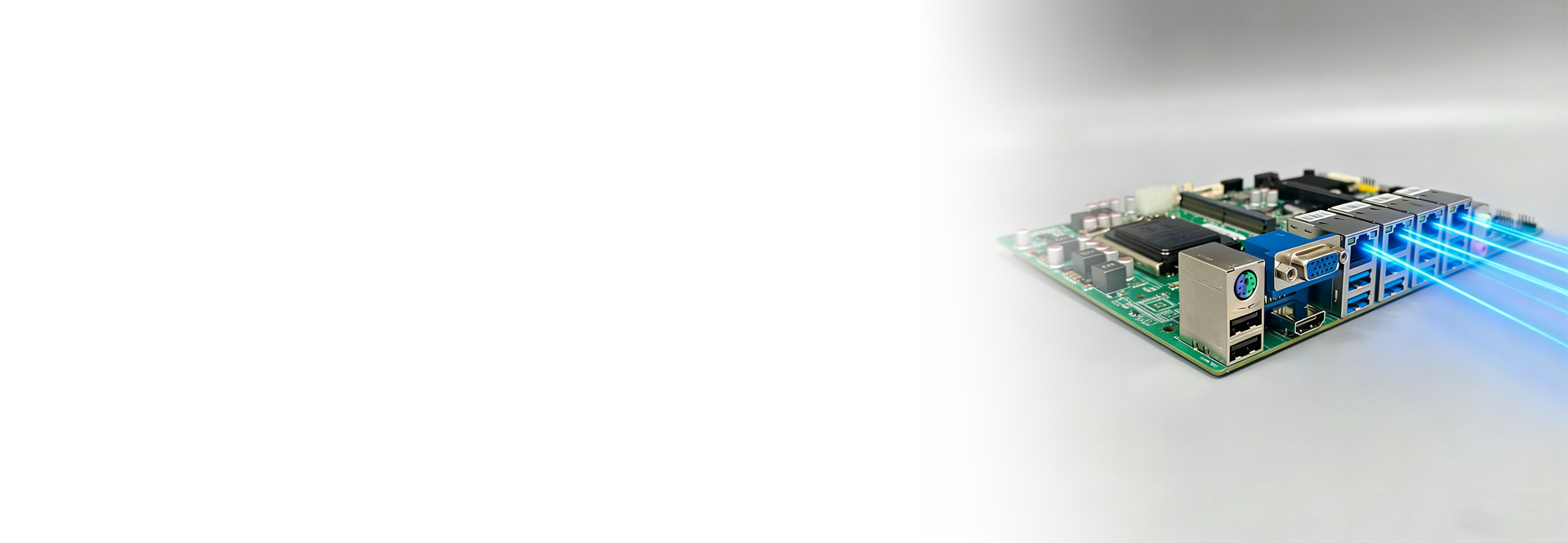

4 Gigabit Ethernet ports

Onboard RJ45 Gigabit Ethernet port with Intel network chip, supporting 10/100/1000Mbps auto-negotiation, plug-and-play, stable connection without disconnection.

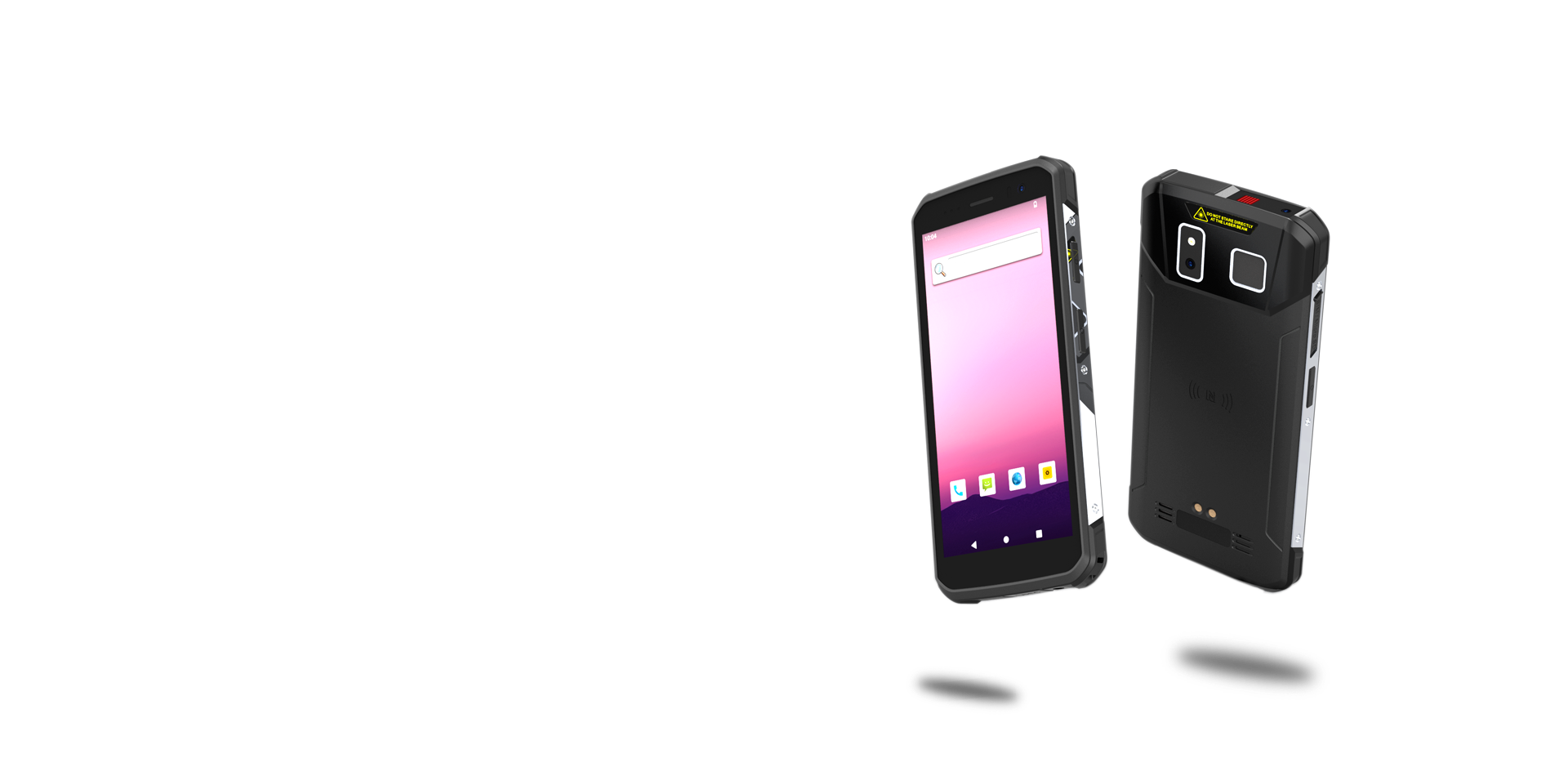

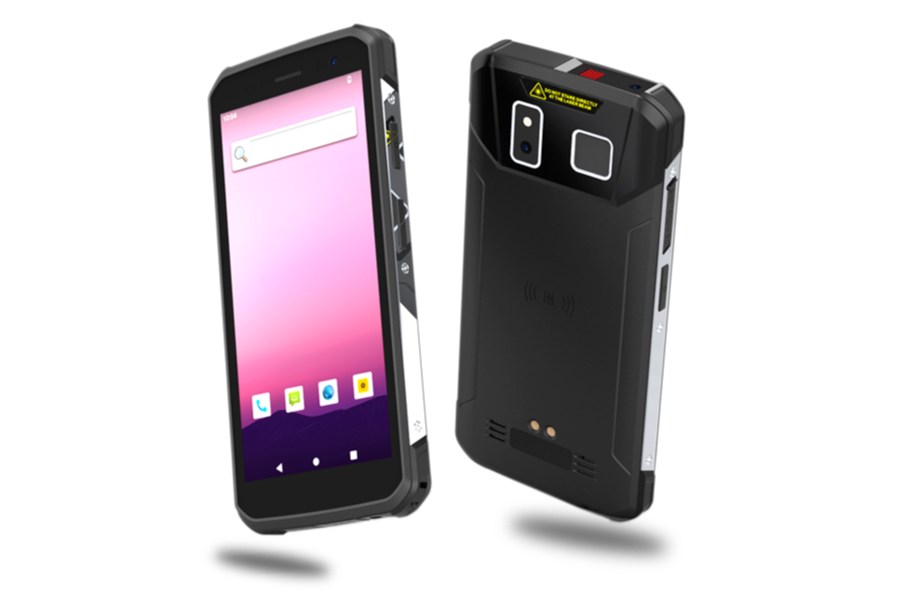

mobile computer mobile computer

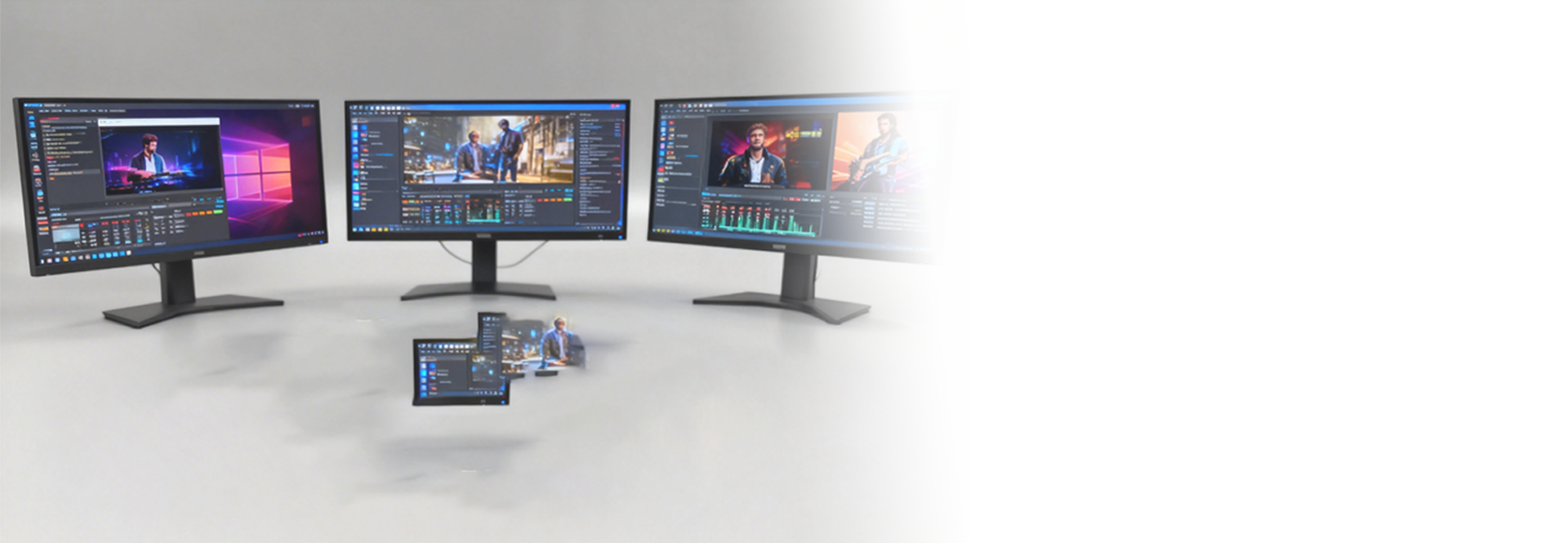

High-definition image quality

Equipped with VGA, HDMI and optional LVDS high-definition interfaces, supports triple display output. Synchronous and asynchronous display enables smooth 4K playback with zero lag.

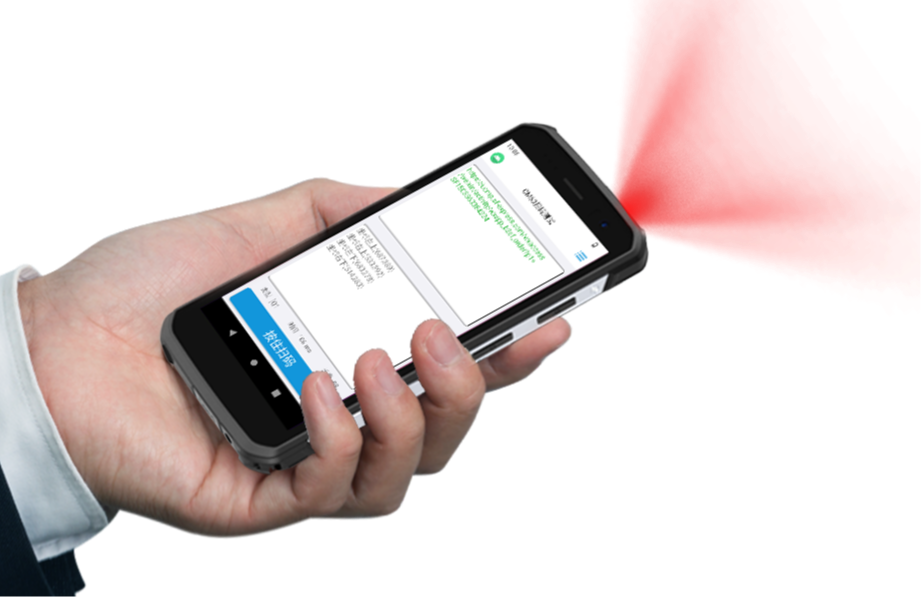

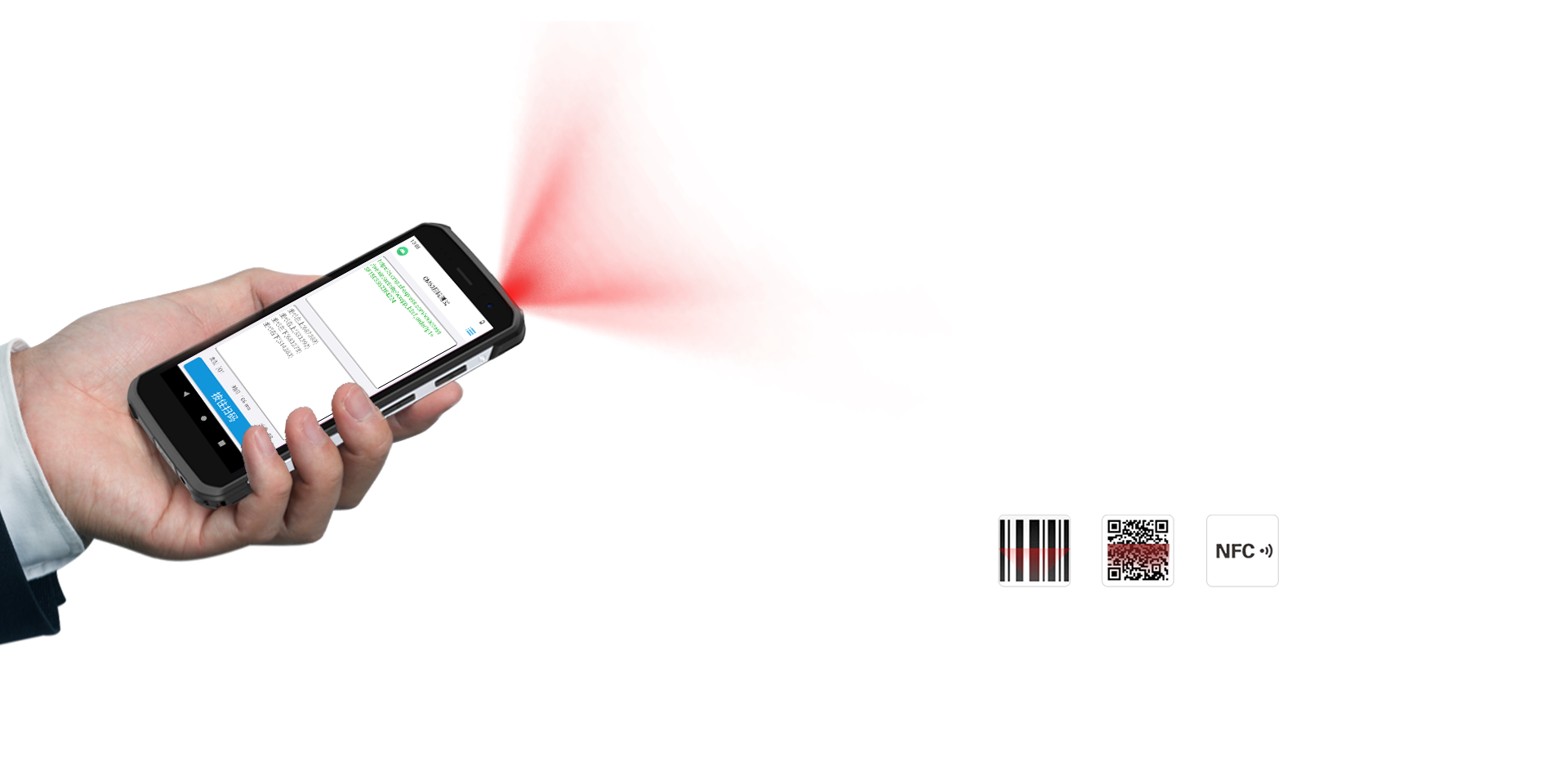

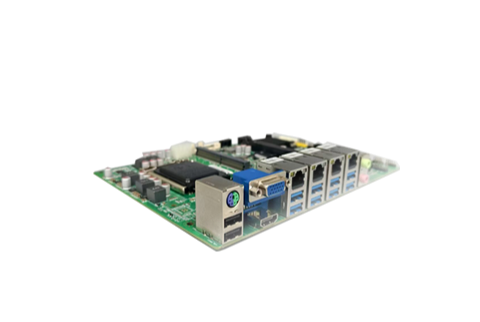

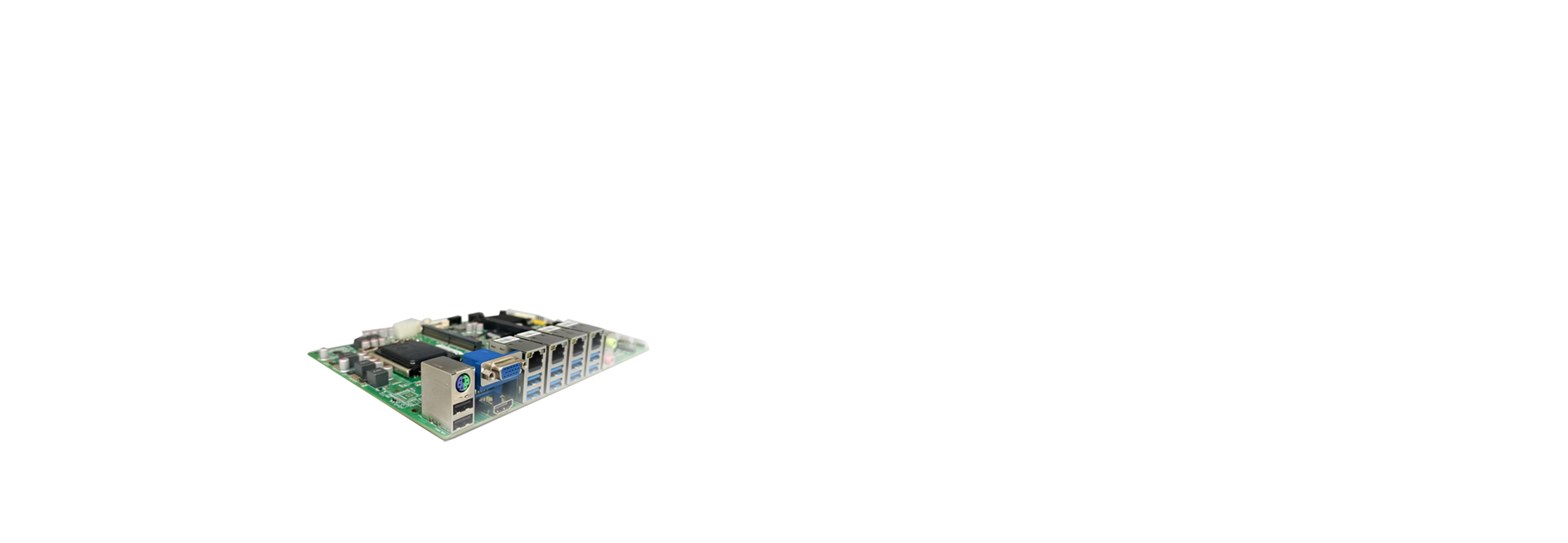

mobile computer Data scanning code collection mobile computer Data scanning code collection

Compatible with various operating systems

Supports mainstream systems including Win10, Win11 and Linux distributions, compatible with various configuration software. Contact customer service for customized system installation.

Product specifications

English Translation

Motherboard Dimensions: 225mm (L) × 170mm (W)
CPU: Supports 8th & 9th Gen Intel Core i7/i5/i3 processors
Chipset: Intel B360
Power Supply: 2×4PIN + ATX 8PIN 12V power input. It is recommended to increase the power rating according to actual CPU power consumption and load.
Memory: 1×DIMM DDR4 slot; supports DDR4 2666/2400/2133 MHz, max capacity 16GB
Display Interfaces
  • 1×VGA: Max resolution 1920×1080
  • 1×HDMI: Max resolution 4096×2304
  • 1×LVDS: Max resolution 1920×1080
Network
  • 4×LAN ports: Intel I225-V Gigabit Ethernet
  • 1×WIFI slot: WIFI compatible
Audio
  • Onboard Realtek ALC662VD HD audio codec, 6-channel high-fidelity audio controller
  • 1×AUDIO port: Audio output (Green) + Microphone input (Pink)
  • 1×F_AUDIO header: Standard 8Pin (2×5Pin, 2.54mm) audio header
Storage
  • 2×SATA ports: Standard SATA 7PIN 3.0, max transfer speed 6.0 Gb/s
  • 1×M.2 slot: Supports PCIe and SATA protocols
  • 2×PWR headers: 4Pin (1×4Pin, 2.0mm) hard drive power, 5V/12V output
USB
  • 2×Dual-layer USB 3.0 ports (rear, blue)
  • 3×Dual-layer USB 2.0 ports (rear, black/blue)
  • 1×FUSB header: 9Pin (2×5Pin, 2.54mm) for external USB expansion
Front Panel Header
1×JFP header (10Pin, 2×5Pin, 2.54mm): Power switch, power LED, HDD LED & reset switch
Expansion Slots: 1×PCIe x1, 1×PCIe x4, 1×PCIe x16
Others
  • 2×CFAN connectors: 4Pin smart fan headers with speed adjustment and monitoring
  • 1×IVCN header (6Pin, 1×6Pin, 2.0mm): LVDS backlight control
Serial Ports
6×JCOM headers for RS232; COM1 & COM2 additionally support RS485 (10Pin, 2×5Pin, 2.0mm)
Operating Environment
  • Operating Temperature: -20℃ ~ 60℃
  • Operating Humidity: 5% ~ 95% RH, non-condensing
BIOS: W25Q128JV
Watchdog: Programmable watchdog with hardware reset (256 levels, 0~255 seconds); supports power-on startup and scheduled power-on
Operating Systems: Compatible with Windows 10, Windows 8, Linux and more
