Micro industrial controlhost

Micro industrial controlhost

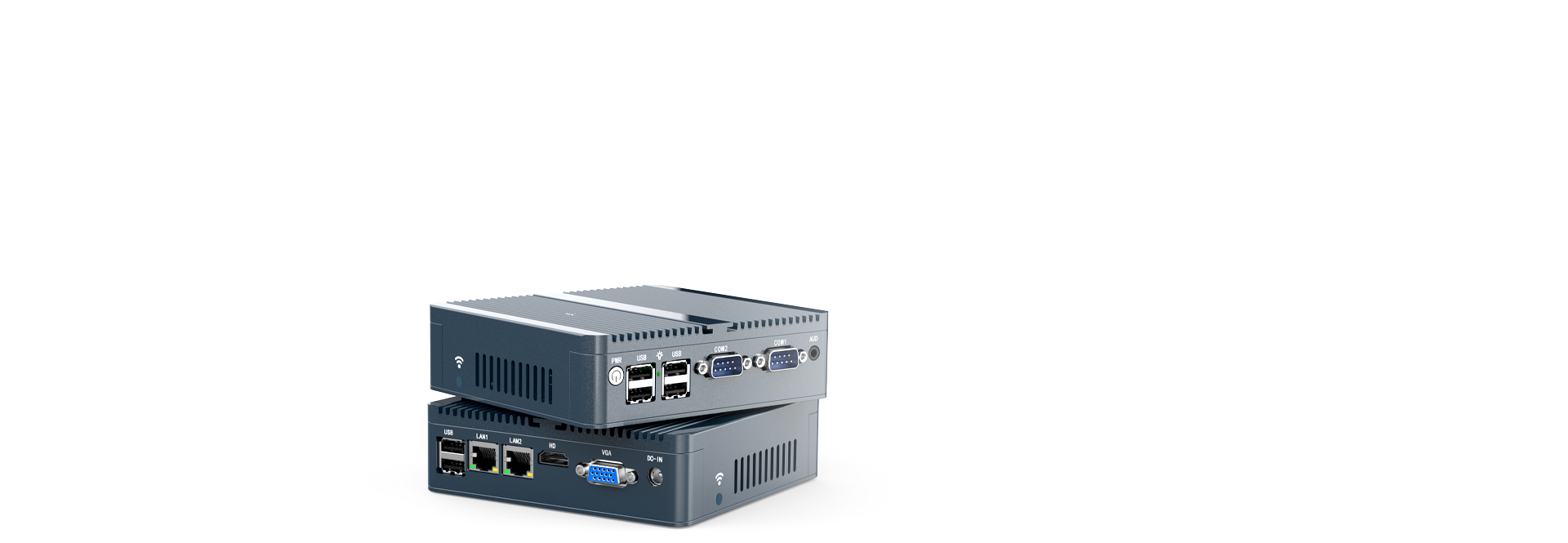

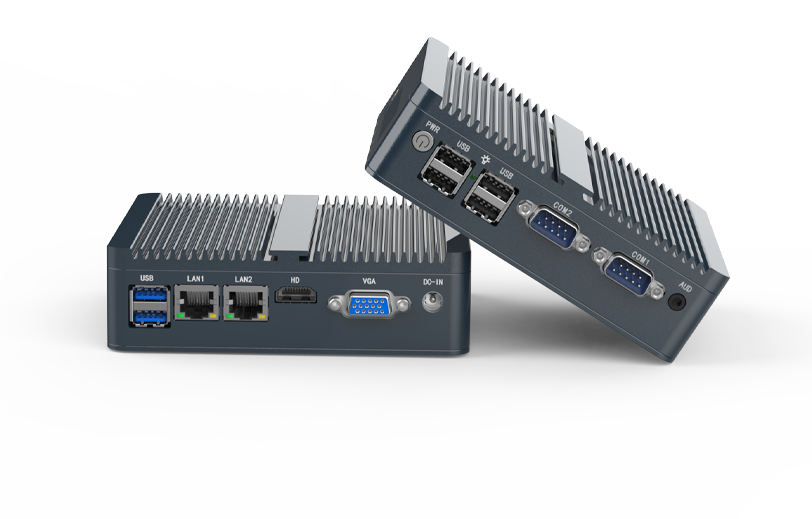

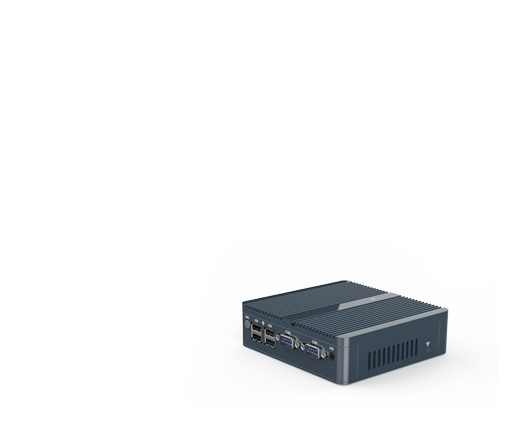

This full aluminum industrial mini PC is powered by Intel Quad-Core N150, supports DDR4 up to 16GB and M.2 SATA up to 1TB. It features rich ports: 2× Gigabit RJ45, 2× RS232 COM, 6× USB, HDMI+VGA, 4G/5G SIM slot, WiFi and audio. Compatible with Ubuntu Linux and Windows 11, it’s compact, stable and perfect for industrial control and automation

Micro industrial controlhost

Designed specifically for industrial environments

This industrial mini PC features a fanless dustproof design, is shockproof and resistant to high and low temperatures, supports power-on auto-start and Wake-on-LAN, offers dual hard drive support, built-in wireless WIFI, compatibility with multiple operating systems, and enables stable 7×24 hours continuous operation.

  1. Independently researched & developed, industrial-grade motherboard.

Independently researched and developed dual-architecture industrial-grade motherboard with multiple integrated processor solutions. It adopts industrial-grade electronic components for SMT assembly, featuring high performance and low power consumption, ensuring stable 24/7 operation and an ultra-long service life.

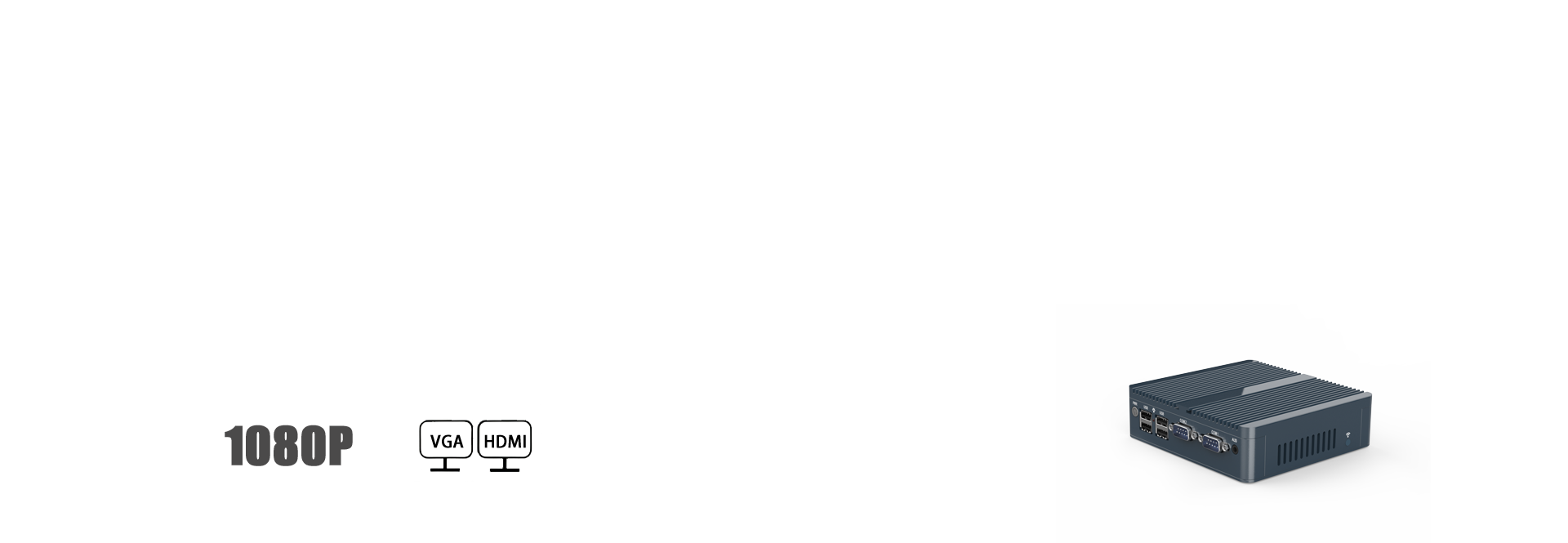

Supports dual-screen clone/extended display

Equipped with VGA + HDMI high-definition interfaces, it supports dual-display output. Both clone mode and extended mode are available, enabling smooth 1080P high-definition video playback without delay. It can also be connected to a projector for conference presentations.

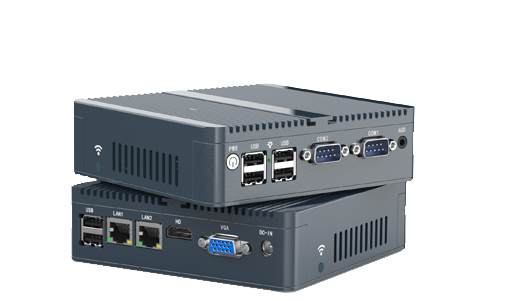

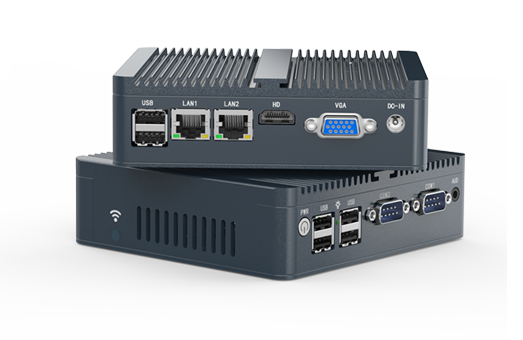

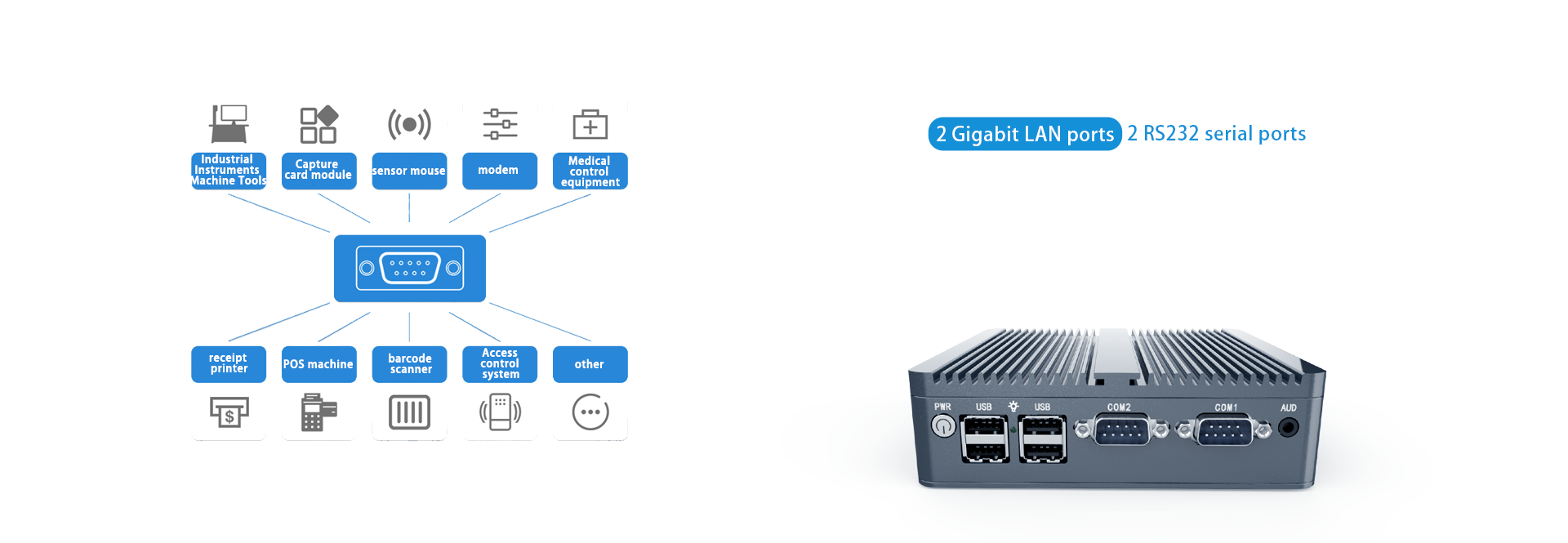

Dual Gigabit LAN Ports + Dual Serial Ports

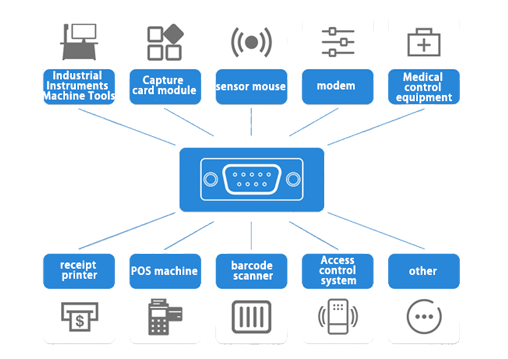

The industrial computer is equipped with 2 RJ45 Gigabit LAN ports supporting Wake-on-LAN, and 2 RS232 (DB9-pin) serial ports, compatible with various devices.

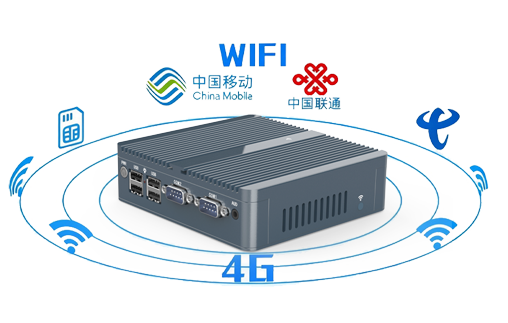

Supports 4G/WIFI wireless networking

It can be equipped with 3G/4G or Wi-Fi connection modules, and has a built-in SIM card slot, making remote wireless communication more convenient and reducing wiring troubles.

Fully enclosed aluminum alloy material

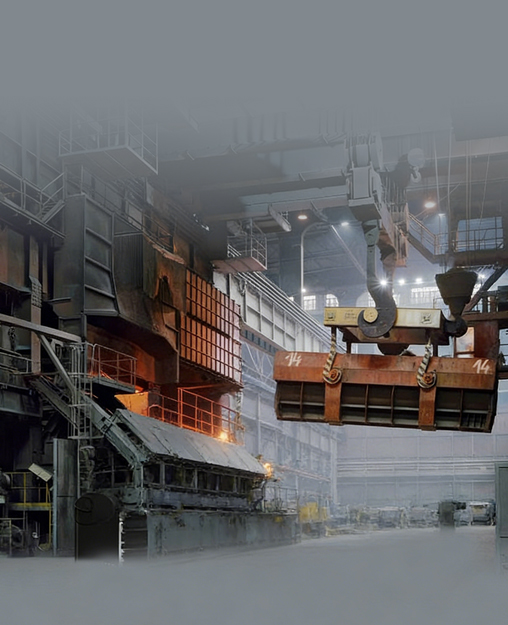

Due to the harsh on-site industrial environment, industrial-grade industrial computers have stronger adaptability to cope with environmental changes such as high temperature and humidity, and feature dustproof, corrosion-resistant, and high/low temperature-resistant capabilities.

Product specifications
  • 基本规格
    主板尺寸:
    225mm(长)*170mm(宽)
    处理器:
    支持第8代、第9代酷睿i7/i5/i3处理器
    芯片组:
    Intel B360
    电源接口:
    2*4PIN ATX、8PIN 12V供电输入
    内存:
    1*DDR4 DIMM插槽,最大支持16GB
    支持2666/2400/2133MHz频率
    操作系统:
    支持Windows 10/8、LINUX等系统
    显示功能
    显示接口:
    VGA 接口,最高1920*1080分辨率
    HDMI 接口,最高4096*2304分辨率
    LVDS 接口,最高1920*1080分辨率
    音频功能
    音频配置:
    集成Realtek ALC662VD高清音频解码器
    支持6声道音频输出
    配备前置、后置音频接口
  • 网络功能
    网口与拓展:
    4个Intel I225-V千兆网口
    预留1个WIFI扩展插槽
    硬盘功能
    存储接口:
    2个SATA3.0接口
    1个NVMe插槽,兼容PCIE/SATA协议
    USB功能
    USB接口:
    2组USB3.0接口
    3组USB2.0接口
    1组前置USB插针,支持外接拓展
    串口功能
    COM串口:
    共6个COM串口,默认支持RS232
    其中2个串口可支持RS485
    扩展插槽
    PCIE插槽:
    1*PCIE1X、1*PCIE4X、1*PCIE16插槽
    风扇功能
    风扇接口:
    2个智能调速风扇接口
    支持风扇转速侦测与智能控速
    其他功能
    看门狗:
    硬件看门狗复位,共256级,范围0~255秒
    支持上电开机、定时开机功能
    运行环境:
    工作温度:-20℃ ~ 60℃
    工作湿度:5%~95%相对湿度,无冷凝
