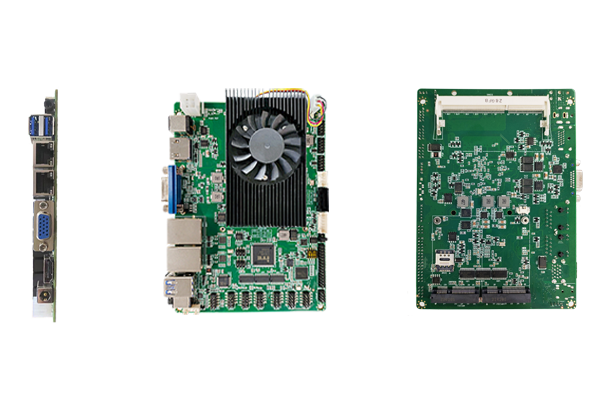

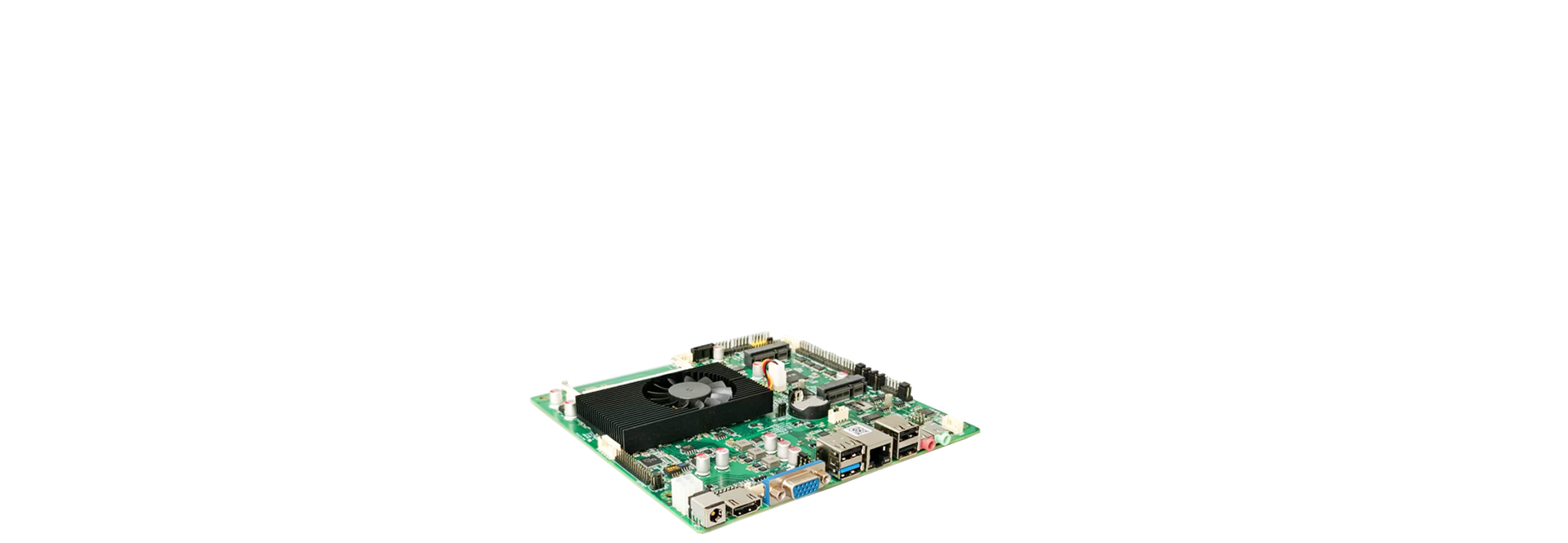

3.5 J1900 Motherboard

  • Intel Celeron J1900
  • DDR3 RAM
  • HDMI + VGA + LVDS
  • 4×USB Ports
  • 6×Serial Ports
  • Single/Dual LAN Optional
  • Support Power-on After Power Failure
  • Support WiFi/4G
  • MSATA SSD
  • 170mm x 170mm
3.5 J1900 Motherboard

Product Features

  • Intel Celeron J1900
  • DDR3 memory
  • MSATA
  • HDMI/VGA/LVDS
  • 2LAN
  • WIFI/4G
  • USB3.0/2.0
  • win7/10 Linux

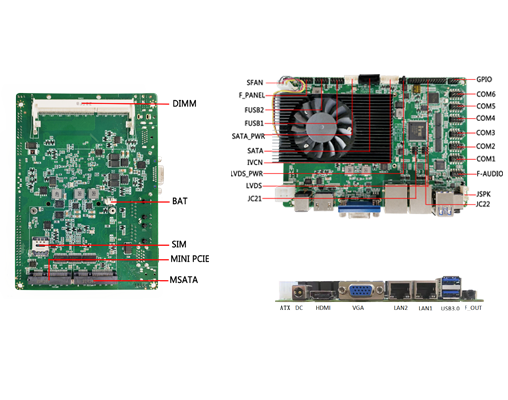

Product Details Display

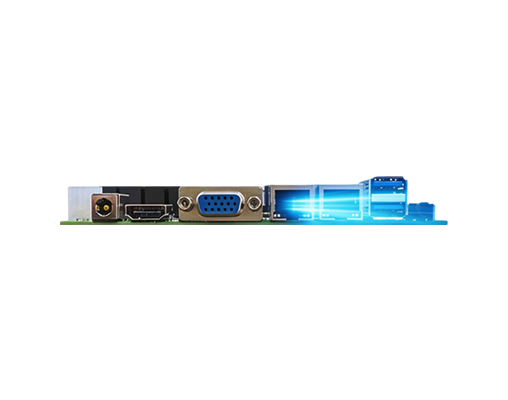

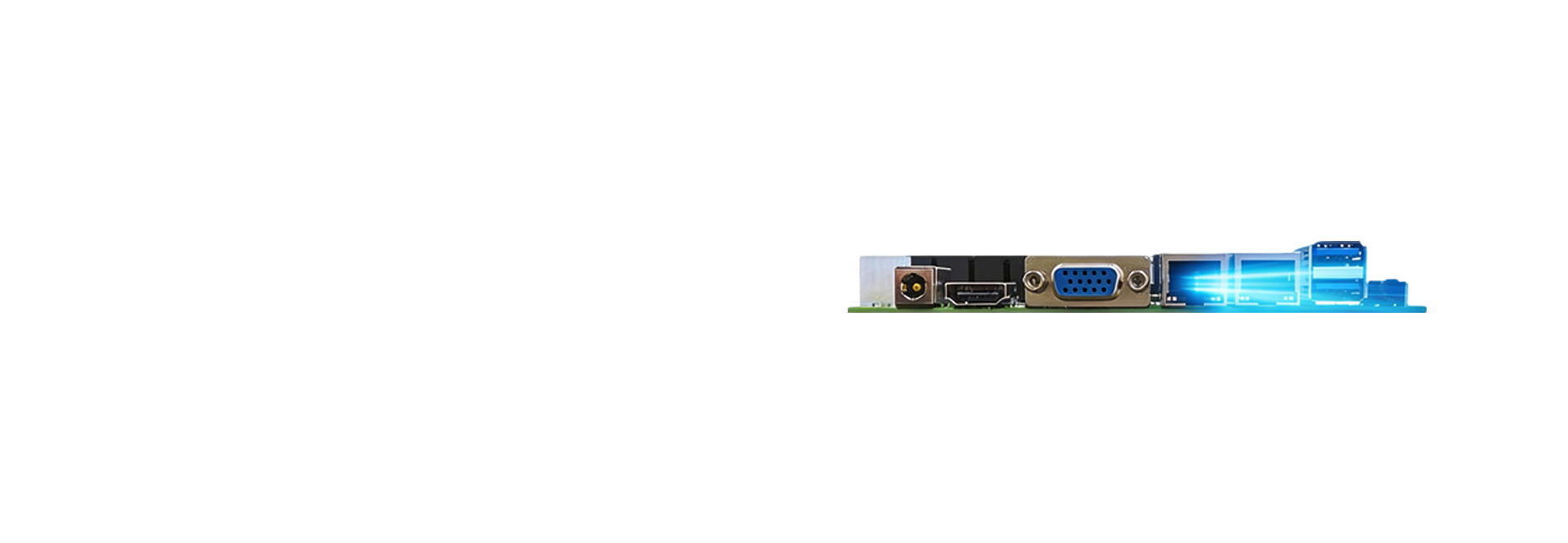

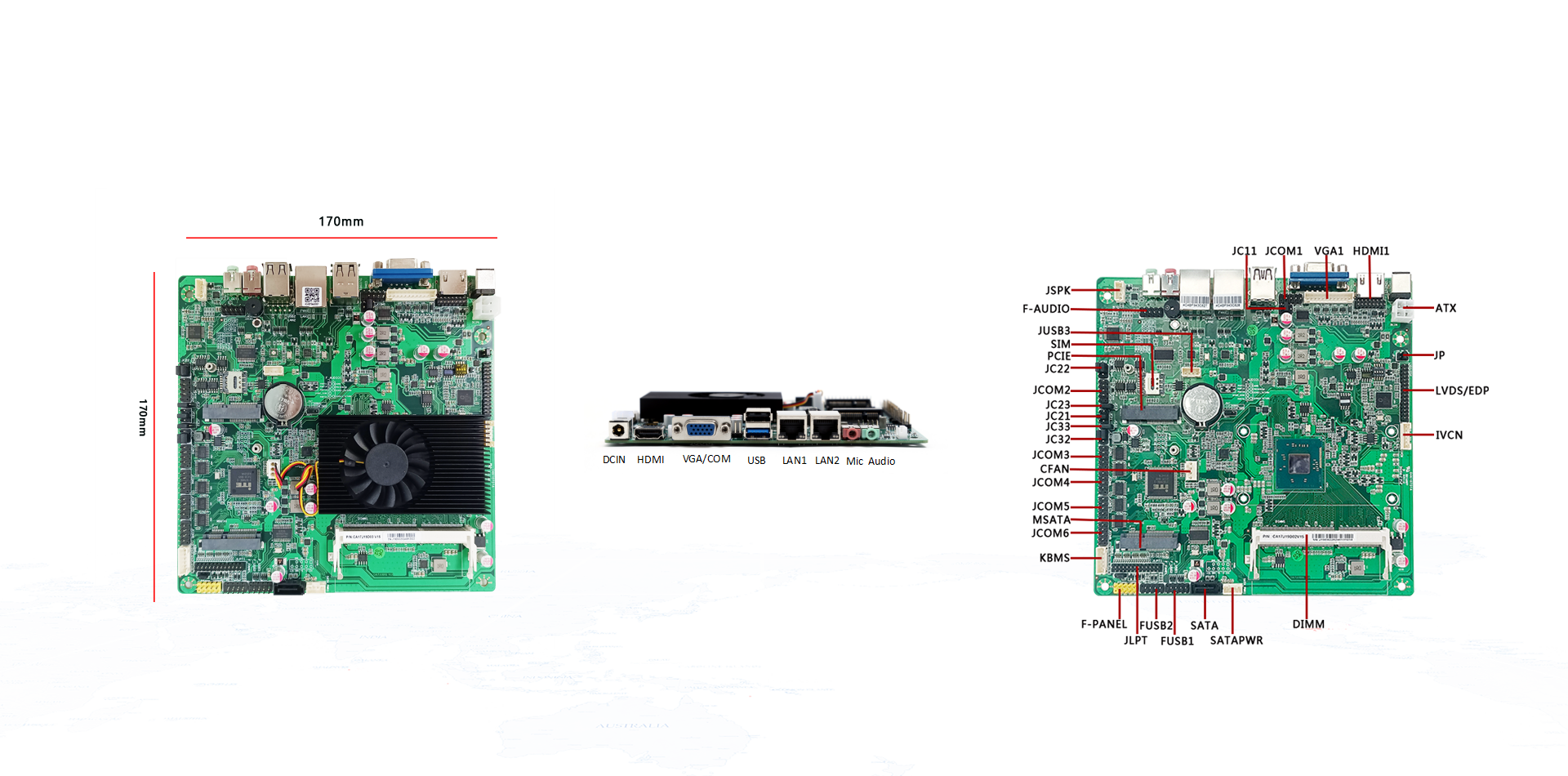

Rich peripheral interfaces: VGA/LVDS/HDMI display ports supporting dual-display output.
Onboard 2 USB ports plus 2 USB pin headers, 6 COM ports; single or dual Gigabit LAN optional.

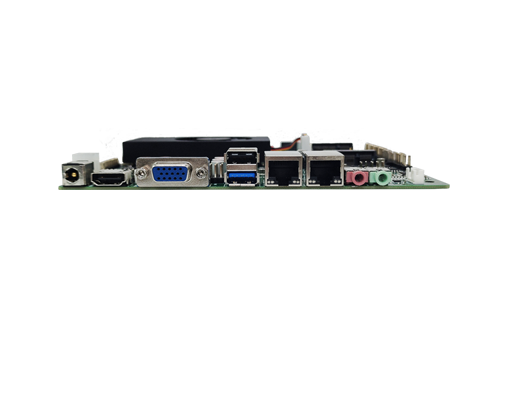

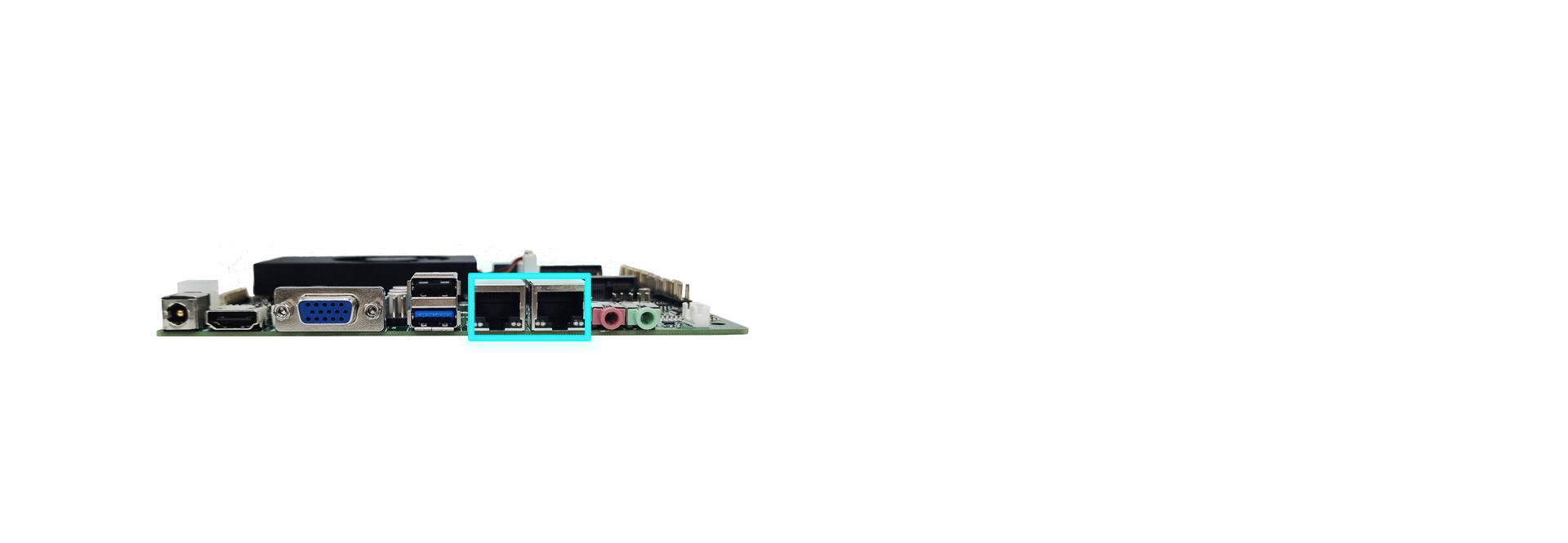

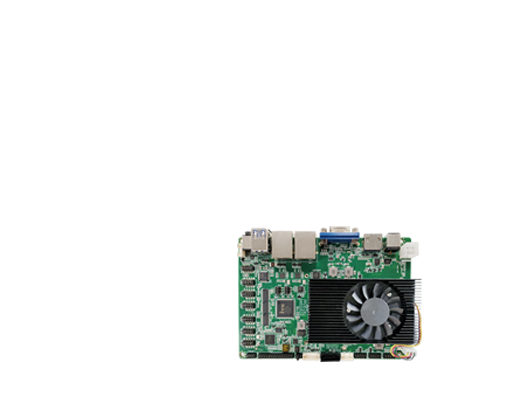

Single or Dual LAN Optional

Gigabit RJ45 LAN port | Full wire-speed | Low latency | Stable connection without dropouts
Onboard Realtek Gigabit RJ45 Ethernet, auto-adaptive 10/100/1000Mbps, plug-and-play, stable connection with no disconnection.

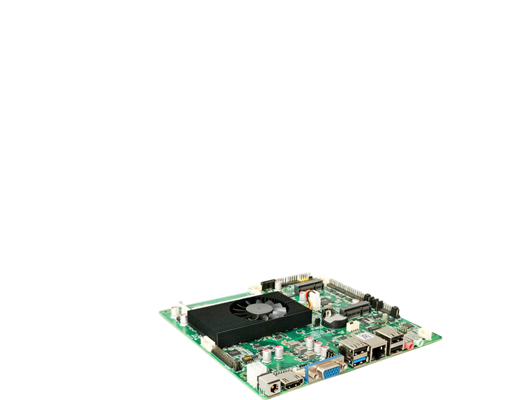

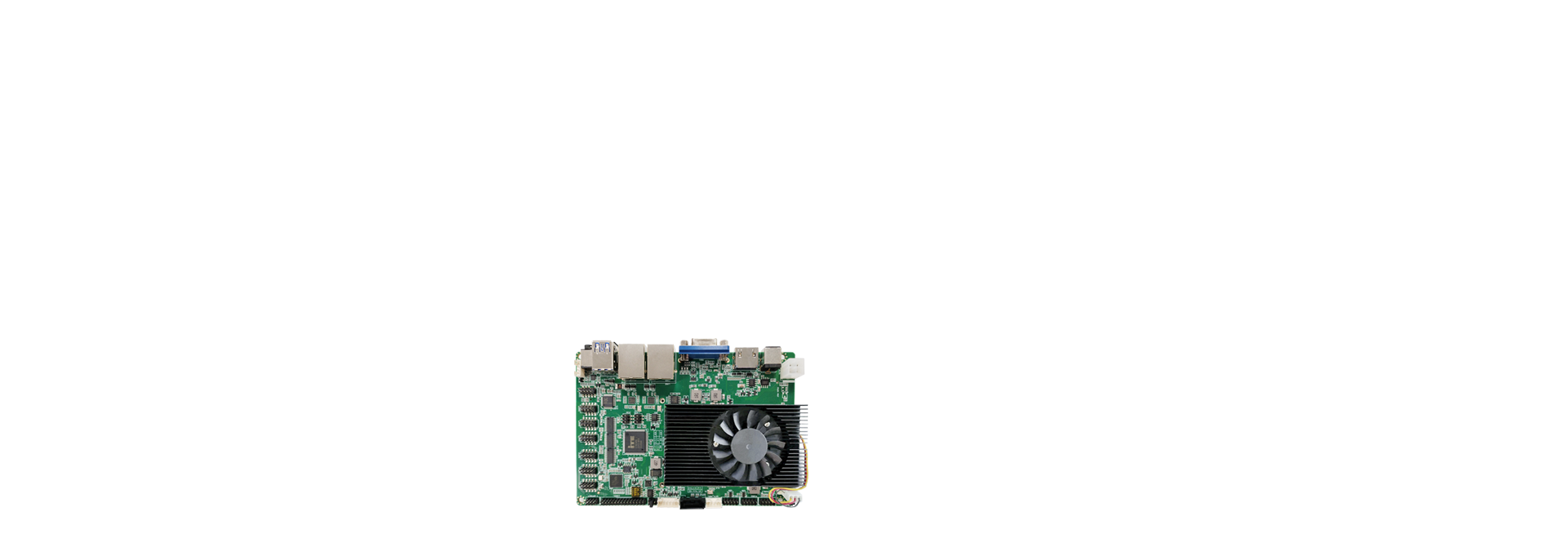

Same/Diff Display

Equipped with VGA, HDMI and LVDS display interfaces;

Supports dual-display output with clone/extended display modes, available combinations:

VGA+HDMI, VGA+LVDS, HDMI+LVDS

Compatible with multiple operating systems

Supports mainstream OS including Windows 7, Windows 10 and Linux distributions, compatible with various configuration software. Please contact customer service if you need to install a specified operating system

Product specifications

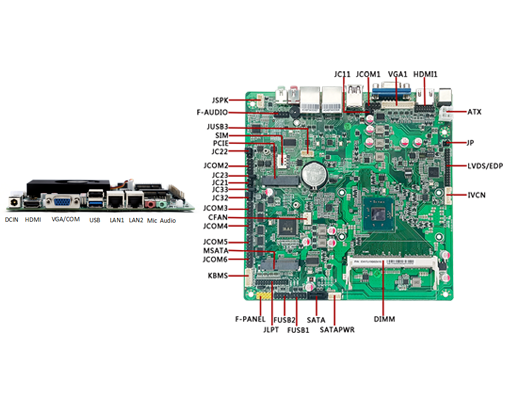

Mainboard Specifications

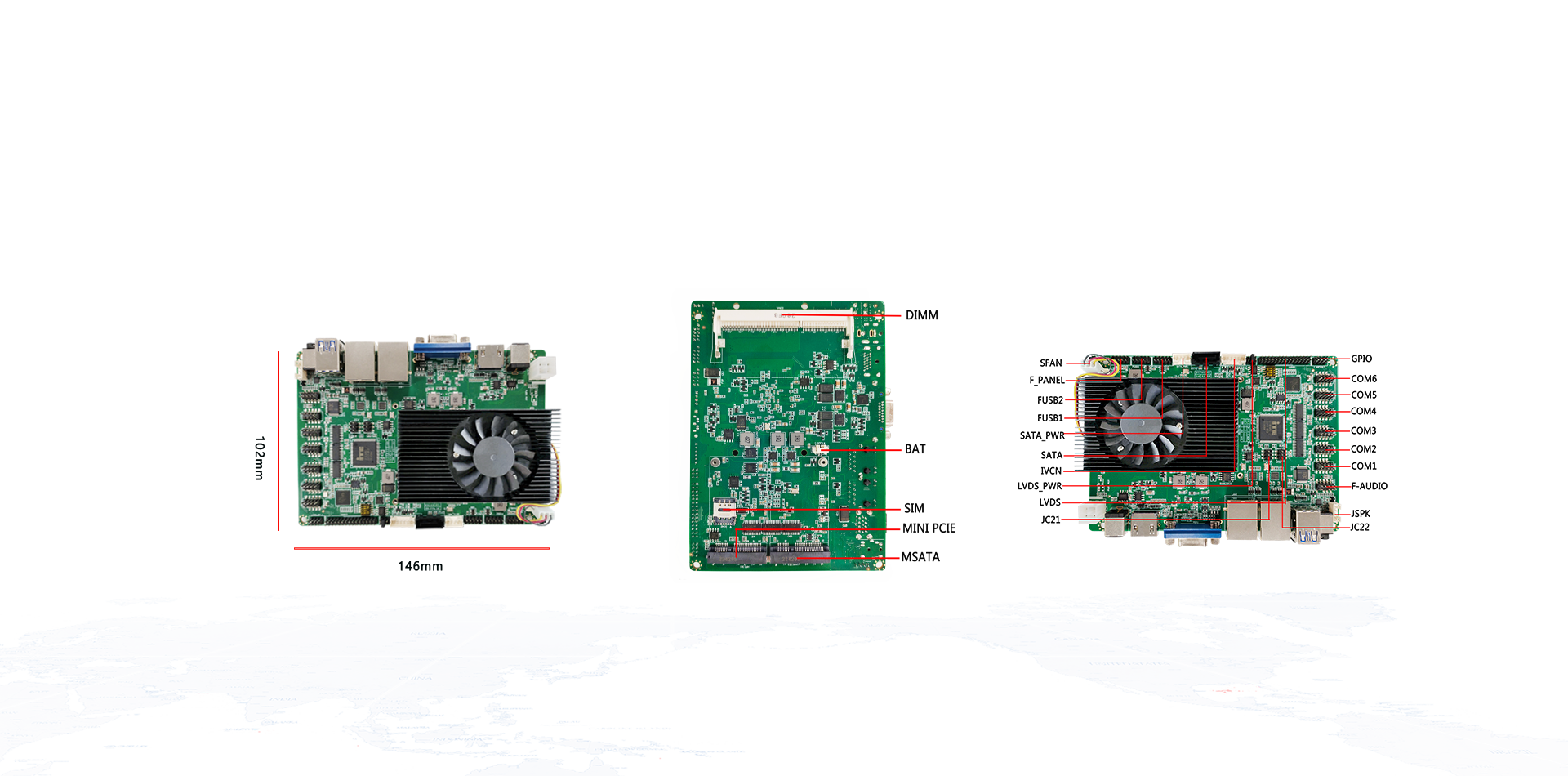

Mainboard Dimension

170mm (L) × 170mm (W)

CPU Processor

Compatible with Celeron / Pentium / N2840 / J1800 / J1900

Chipset

Intel® J1900

Power Supply

  • 1 × DC_IN: 12V DC input
  • 4-pin CPU power connector: Recommended power rating shall be increased according to actual CPU power consumption and load quantity
  • 2 × 2PIN ATX power headers

Memory Support

1 × DDR3 memory slot; supports 1333/1600MHz DDR3 RAM, max. capacity up to 8GB

Display

Onboard Intel® HD Graphics, supports single display, clone dual-display & extended dual-display; single display available under DOS system
  • 1 × VGA port: Max resolution 1920×1080@60Hz
  • 1 × JVGA pin header (12Pin, 1×12Pin, 2.0mm): Max resolution 1920×1080@60Hz
  • 1 × HDMI port: Max resolution 1920×1080@60Hz
  • 1 × JHDMI pin header (16Pin, 2×8Pin, 2.0mm): Max resolution 1920×1080@60Hz
  • 1 × LVDS/eDP header (30Pin, 2×5Pin, 2.0mm, LVDS or eDP optional): Max resolution 1920×1200@60Hz
  • 1 × JP1 header (6Pin, 2×3Pin, 2.0mm): LVDS voltage selection pin
  • 1 × LVCN header (6Pin, 1×6Pin, 2.0mm): LVDS backlight on/off control pin

Network

  • 2 × LAN ports: Realtek RTL8111H Gigabit Ethernet, support Wake-on-LAN
  • 1 × Mini PCIe slot: Pre-configured for WiFi, 4G & SIM card modules

Storage

  • 1 × mSATA slot: Compliant with SATA protocol for mSATA SSD
  • 1 × Standard SATA 2.0 port: Max transfer speed 3.0Gbps
  • 1 × SATA_PWR header (4Pin, 1×4Pin, 2.0mm): 5V power output for hard disk

Audio

Onboard Realtek ALC662/ALC892/ALC660 HD audio codec, 6-channel high-definition audio controller
  • 1 × F_MIC, 1 × F_OUT jack: Green line-out + pink microphone input
  • 1 × F_AUDIO header (9Pin, 2×5Pin, 2.54mm): Standard front panel audio pin
  • 1 × JSPK socket (4Pin, 1×4Pin, 2.0mm): External power amplifier interface

USB

  • 2 × F_USB headers (9Pin, 2×5Pin, 2.54mm): Front-panel USB pinout
  • 1 × J_USB3 header (4Pin, 1×4Pin, 2.54mm)
  • 1 × stacked USB3.0 port: Standard USB3.0 interface
  • 1 × stacked USB2.0 port: Standard USB2.0 interface (can replace with extra LAN upon request)

Front Panel Switch

1 × F_PANEL header (9Pin, 2×5Pin, 2.54mm): Power switch, power LED, HDD LED & reset pins

Other I/O Interfaces

  • 1 × LPT header (25Pin, 2×13Pin, 2.0mm): Parallel printer port
  • 1 × KBMS socket (6Pin, 1×6Pin, 2.0mm): PS/2 keyboard & mouse port
  • 6 × JCOM headers (9Pin, 2×5Pin, 2.54mm): 4×RS232 + 2×RS232/RS485 (2×TTL optional)
  • 1 × CFAN socket (4Pin, 1×4Pin, 2.54mm): 5V PWM cooling fan connector

Operating Environment

Operating Temperature: -20℃ ~ 60℃; Operating Humidity: 5%~95% RH, non-condensing

Watchdog

Programmable hardware watchdog timer with hardware reset function, 256-grade timing (0~255 seconds adjustable)

Supported OS

Windows7 / Windows8 / Windows10 / Linux and other mainstream operating systems
