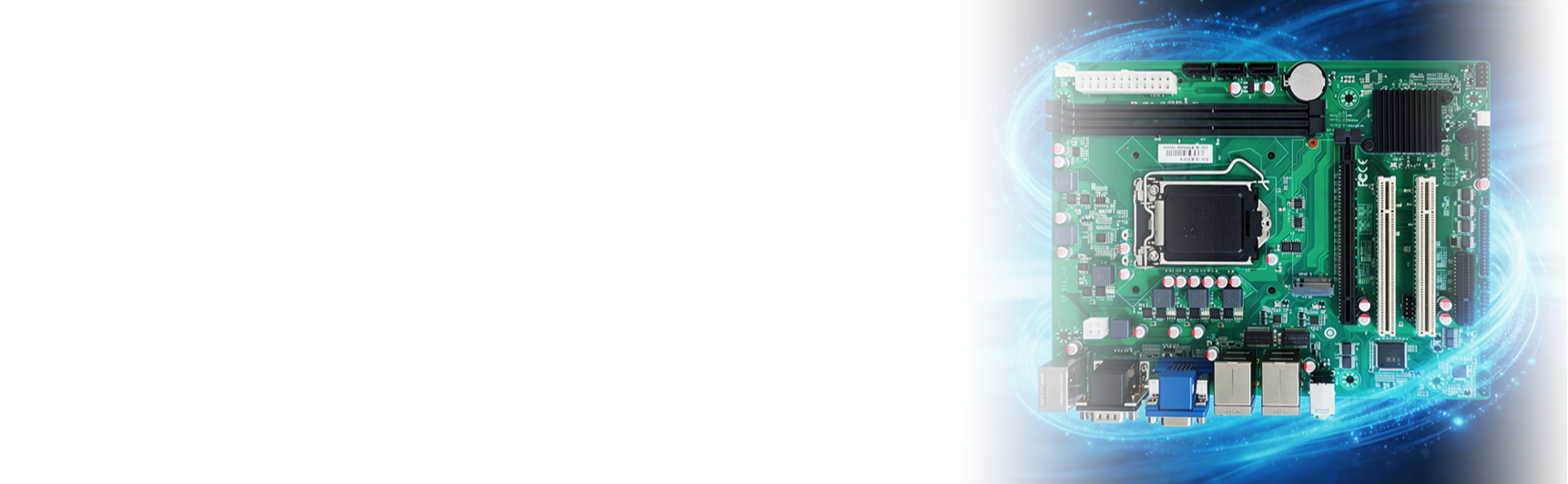

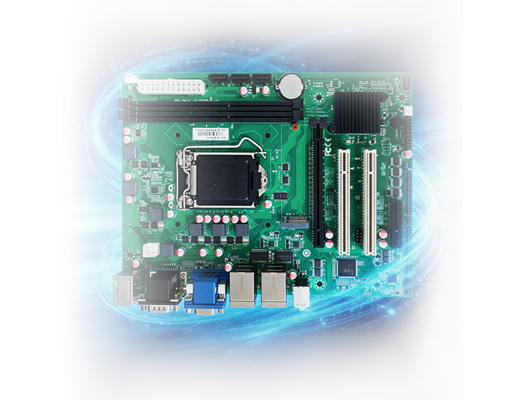

B75 Motherboard LGA1155 for 2nd & 3rd Gen Intel CPU

  • LGA1155 socket, compatible with 2nd & 3rd Gen Intel CPUs
  • 2 DDR3 memory slots
  • HDMI + VGA video ports
  • Dual Ethernet ports
  • 6 USB ports
  • 6 serial ports
  • Audio support
  • PS2 interface support
  • 1 PCIe X16, 2 PCI slots, 1 PCIe X4 slot
B75 Motherboard LGA1155 for 2nd & 3rd Gen Intel CPU

Product Features

  • LGA1155 2/3th
  • DDR3 memory
  • M.2 hard drive
  • HDMI + VGA
  • 2LAN
  • USB3.0/2.0
  • PCIE+PCI
  • win7/10 Linux

Product Details Display

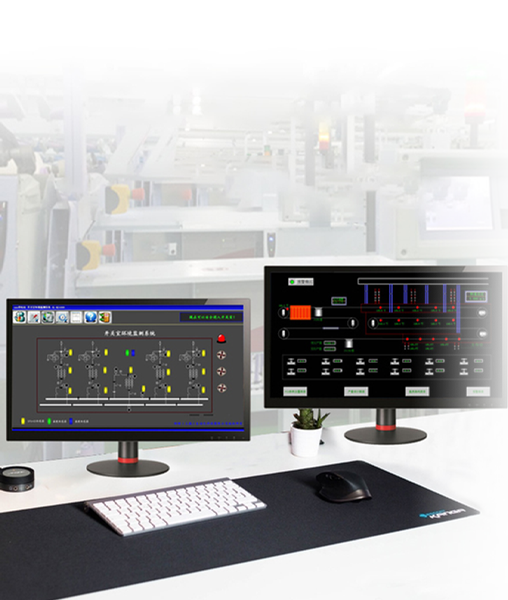

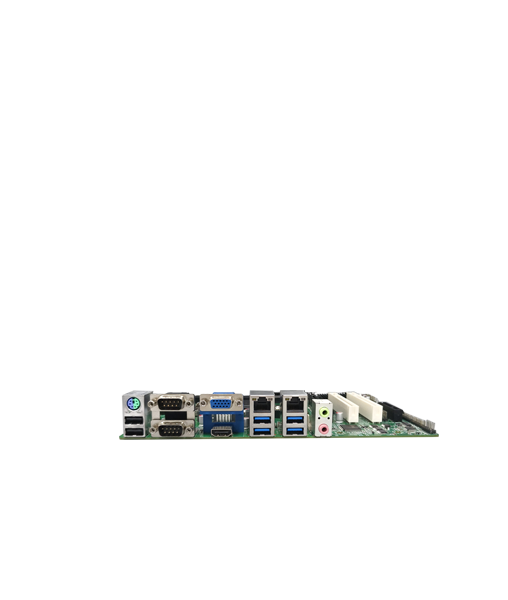

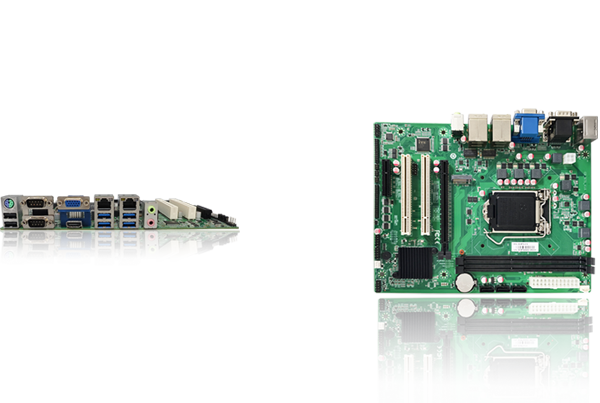

Rich peripheral interfaces, dual-display supported via VGA/HDMI

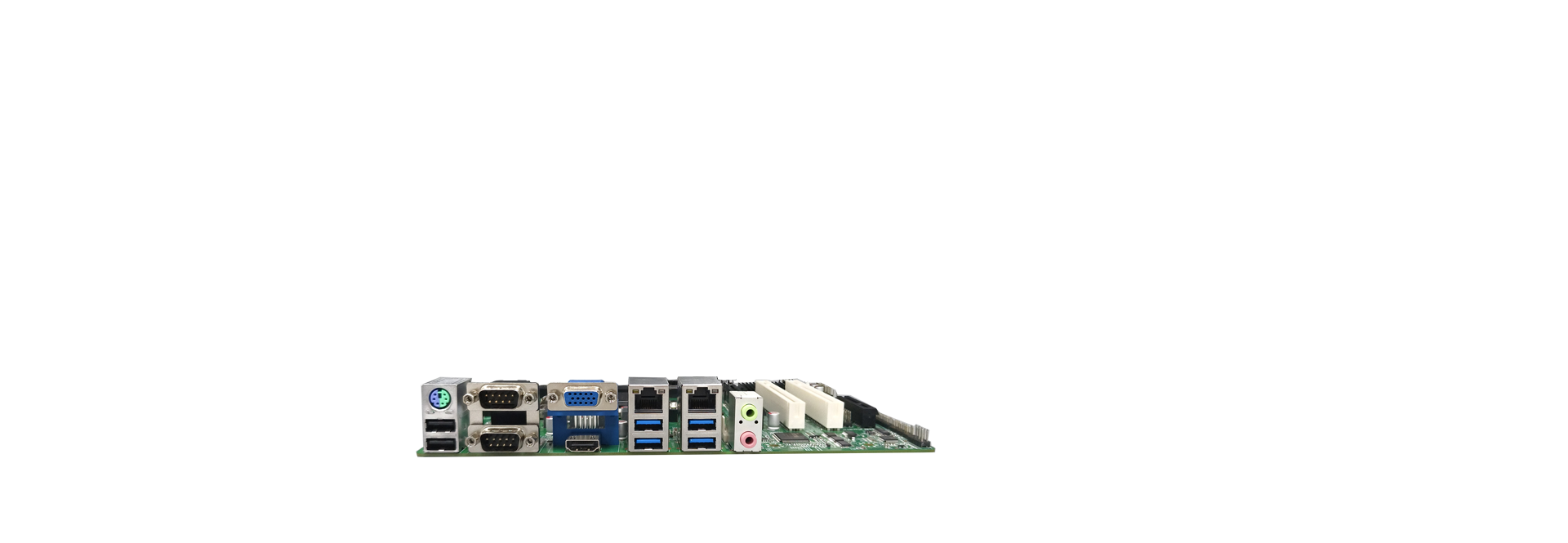

Onboard 6 USB ports, 6 serial ports, dual network ports, PCIe x16, PCIe x4 and dual PCI expansion slots

Powerful Configuration, Meet Diverse Needs

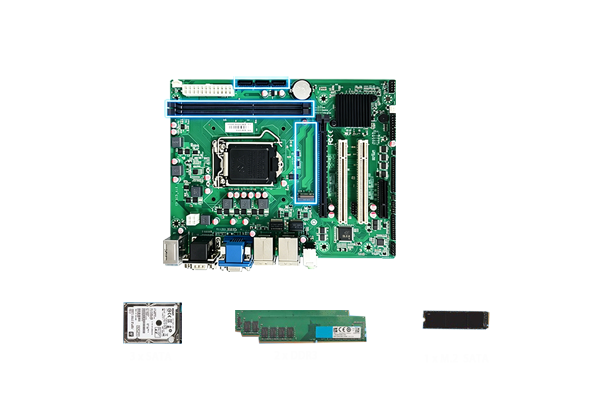

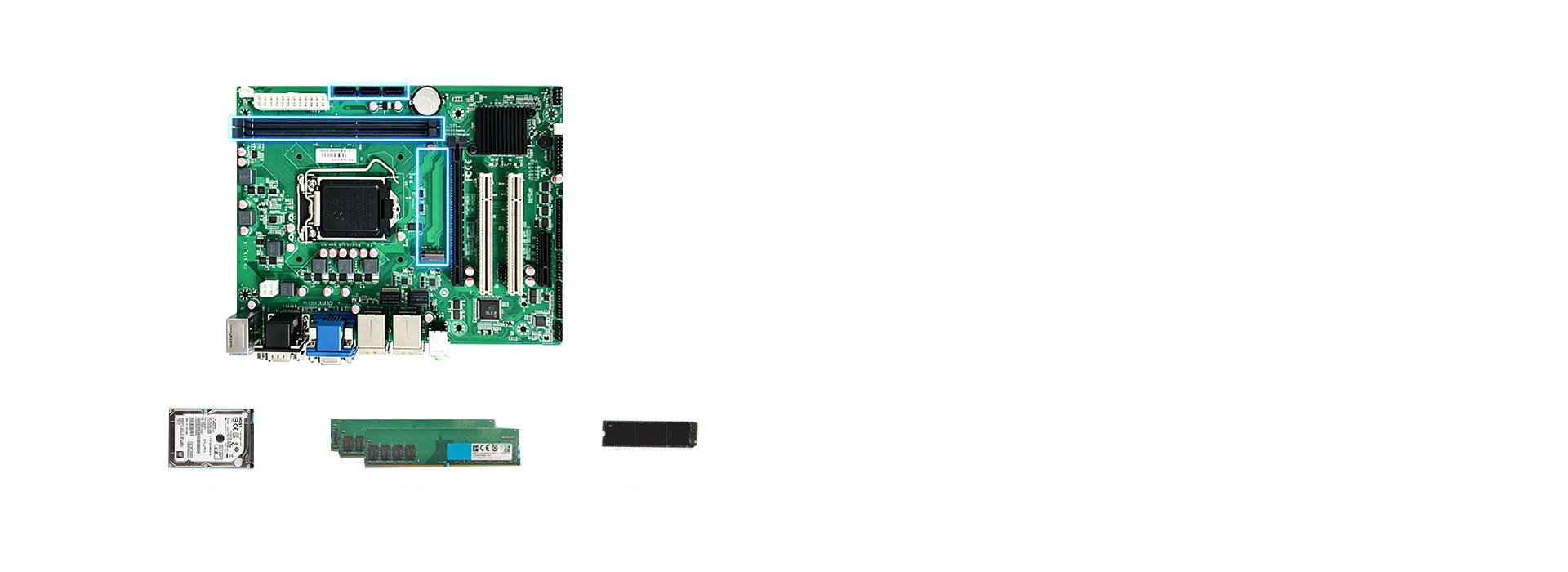

Flexible hardware architecture with dual-channel DDR3 memory slots, supporting 2 DDR3 memory modules up to 16GB maximum capacity. Delivers powerful performance boost, plug-and-play without complicated debugging.

Multiple expansion slots, flexible expansion

Equipped with 1 standard PCIe x16 slot, 1 standard PCIe x4 slot and 2 standard PCI slots, it fully meets expansion demands in various industrial fields.

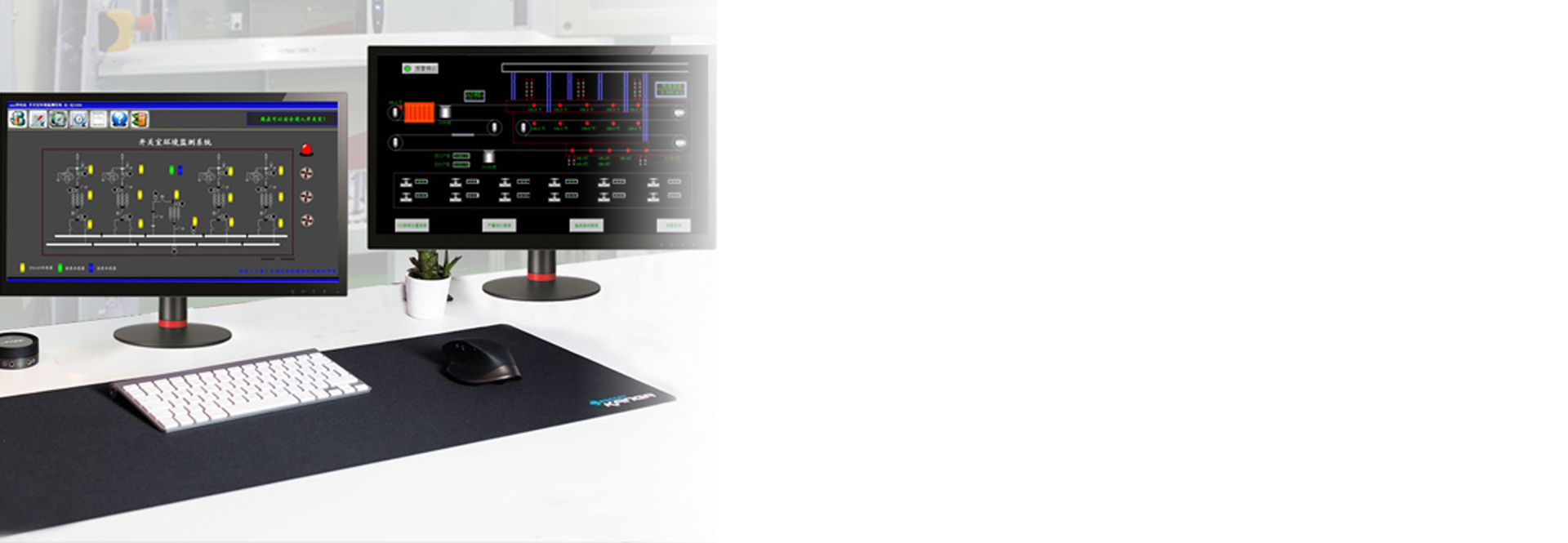

High-definition image quality, simultaneous & split displa

Onboard HDMI+VGA dual video outputs, supporting dual-screen clone and extended display modes. Compatible with traditional VGA monitors and high-definition HDMI screens, plug and play without adapters or extra settings.

Gigabit Ethernet Port     High-speed Transmission

Gigabit network transmission speed ensures fast and stable data transmission. It caters to high-demand network scenarios including industrial IoT and cloud computing, delivering reliable support for device networking

Compatible with multiple operating systems

Supports mainstream systems including Win7, Win10 and Linux distributions, compatible with various configuration software. Contact customer service if you need a specific system installation.

Product specifications

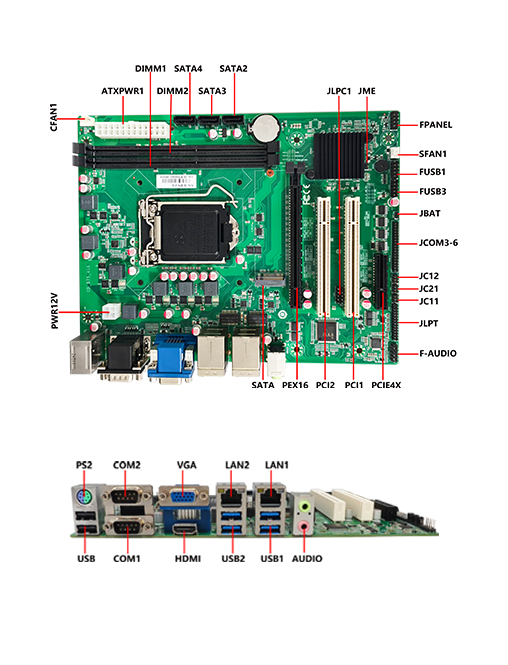

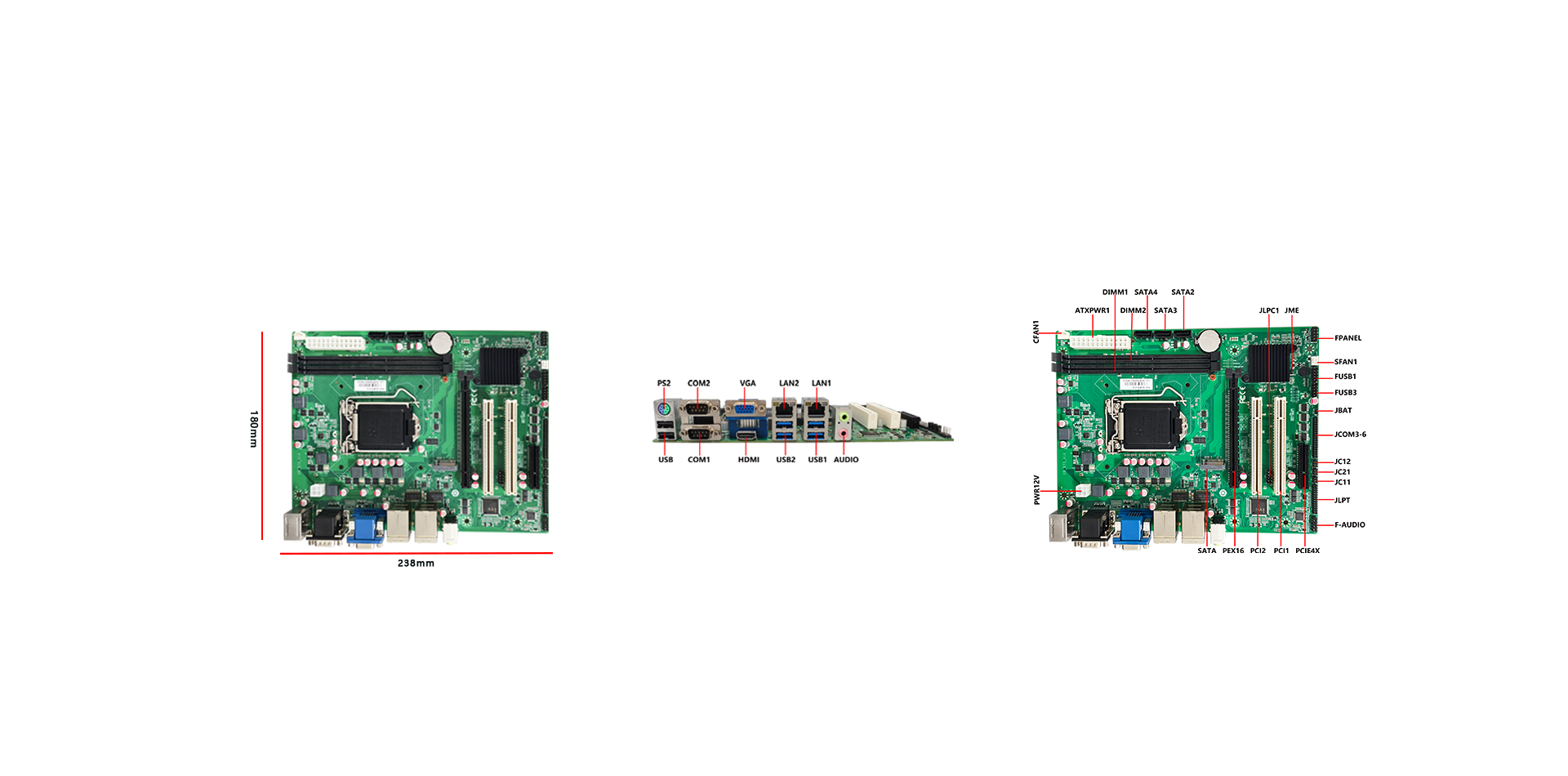

Motherboard Size: 185mm (L) × 238mm (W)
CPU Processor: Compatible with 2nd Gen (Sandy Bridge) and 3rd Gen (Ivy Bridge) Core processors with LGA 1155 socket.
Chipset: Intel B75 Chipset
Power Supply:
1×24PIN ATX, standard 24PIN ATX power input
1×4PIN CPU power input. Recommended power wattage shall be increased based on actual CPU power consumption and load quantity.
Memory Support: 2×DIMM DDR3 slots, dual-channel DDR3, max 16GB capacity.
Display Output:
1×VGA, max resolution 1920×1080@60Hz
1×HDMI, max resolution 1920×1200@60Hz
Network: 2×LAN ports, RTL8111H Gigabit Ethernet controller
Audio: Integrated ALC897 audio codec with DAC/ADC and digital processing module, supports HD Audio decoding and encoding.
1×Audio port: Green audio output & pink microphone input
1×9Pin F_AUDIO header (2×5Pin, 2.54mm pitch)
Storage: 3×SATA 2.0 7PIN ports, maximum transfer speed 3.0Gbps; SSD2 compatible with SATA protocol
USB:
4×USB3.0 ports (2 stacked blue ports)
2×USB2.0 ports (1 stacked black port)
2×9Pin FUSB headers (2×5Pin, 2.54mm pitch) for external USB expansion
PS2 Port: Supports keyboard and mouse connection
Front Panel Header: 1×9Pin JFP header for power switch, power LED, HDD LED and reset button
Expansion Slots: 1×PCIe x4, 1×PCIe x16, 2×PCI slots
Fan Interface:
1×3Pin SFAN system fan header (2.54mm pitch)
1×4Pin CFAN smart speed-adjustable fan header with speed detection
Serial Port: 6×COM ports compliant with RS232 protocol. COM1/COM2 are dual-layer DB9 ports supporting RS232 & RS485; COM3-COM6 adopt 2×18pin 2.0mm pitch headers
Other Headers:
JME: ME firmware maintenance & security control header
JBAT: Clear CMOS settings via short circuit
JLPC: LPC bus low-level debug port
JLPT: IEEE 1284 parallel port compatible header for old dot-matrix/inkjet printers, industrial devices and programmers
Operating Environment: Operating temperature 0℃~60℃; Relative humidity 5%~95%, non-condensing
BIOS: W25Q64JV
Watchdog: 256-level hardware reset (0-255s), power-on boot & timed boot supported
Operating System: Windows 7/8/10, Linux
