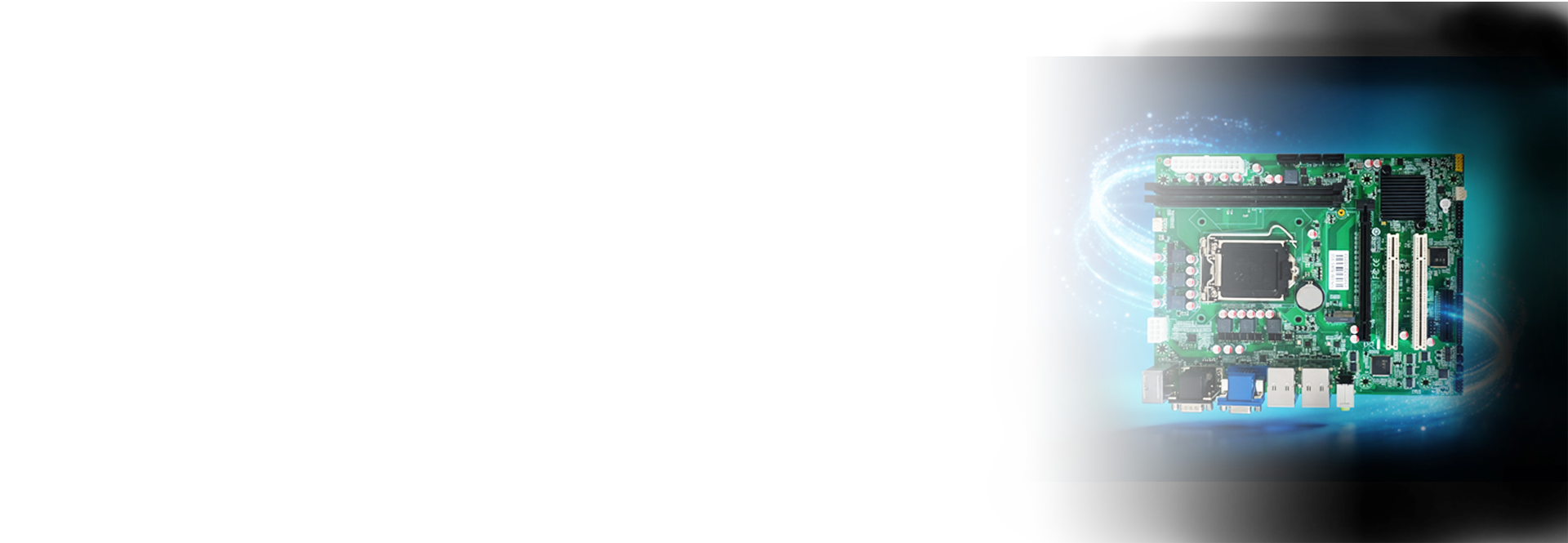

B365 Motherboard

·LGA1151 socket, compatible with 8th/9th Gen CPUs

·2 DDR4 memory slots

·HDMI + VGA   ·Dual LAN ports

·6 USB ports    ·6 serial ports

·Audio support    ·PS/2 support

·Supports WiFi/4G       ·PCIe x16, 2×PCI, PCIe x4

B365 Motherboard

Product Features

  • LGA1151 8/9th
  • 2*DIMM-DDR4

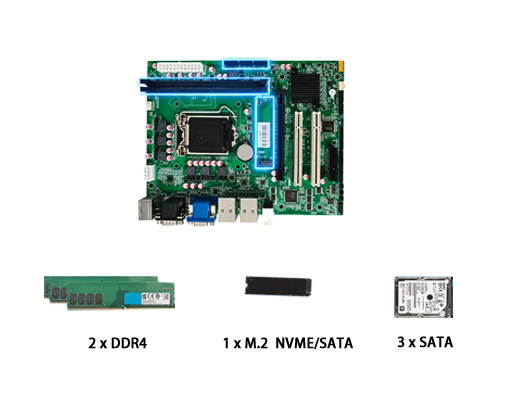

  • M.2 NVME/ SATA
  • VGA+HDMI
  • 2LAN
  • 10USB
  • PCIE+PCI
  • Win10/11 LINUX

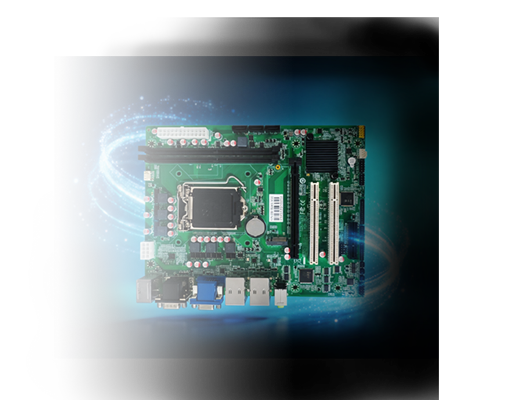

Product Details

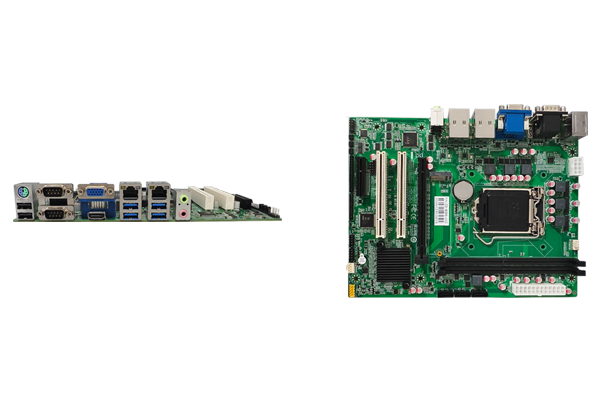

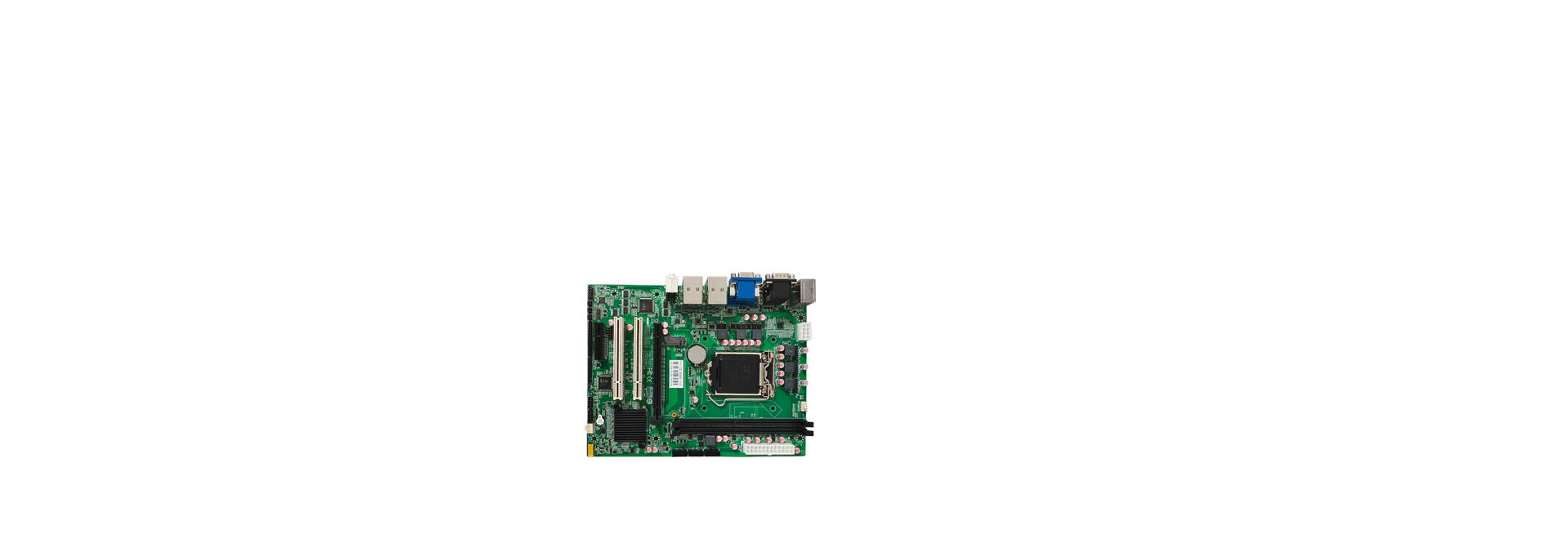

Rich peripheral interfaces, dual-display supported via VGA/HDMI.

Onboard: 10USB ports, 6 serial ports, dual Ethernet ports, plus PCIe x16, PCIe x4 and dual PCI expansion slots.

Multiple expansion slots, flexible expandability

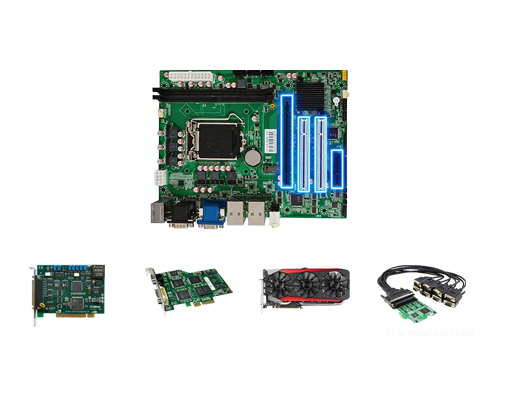

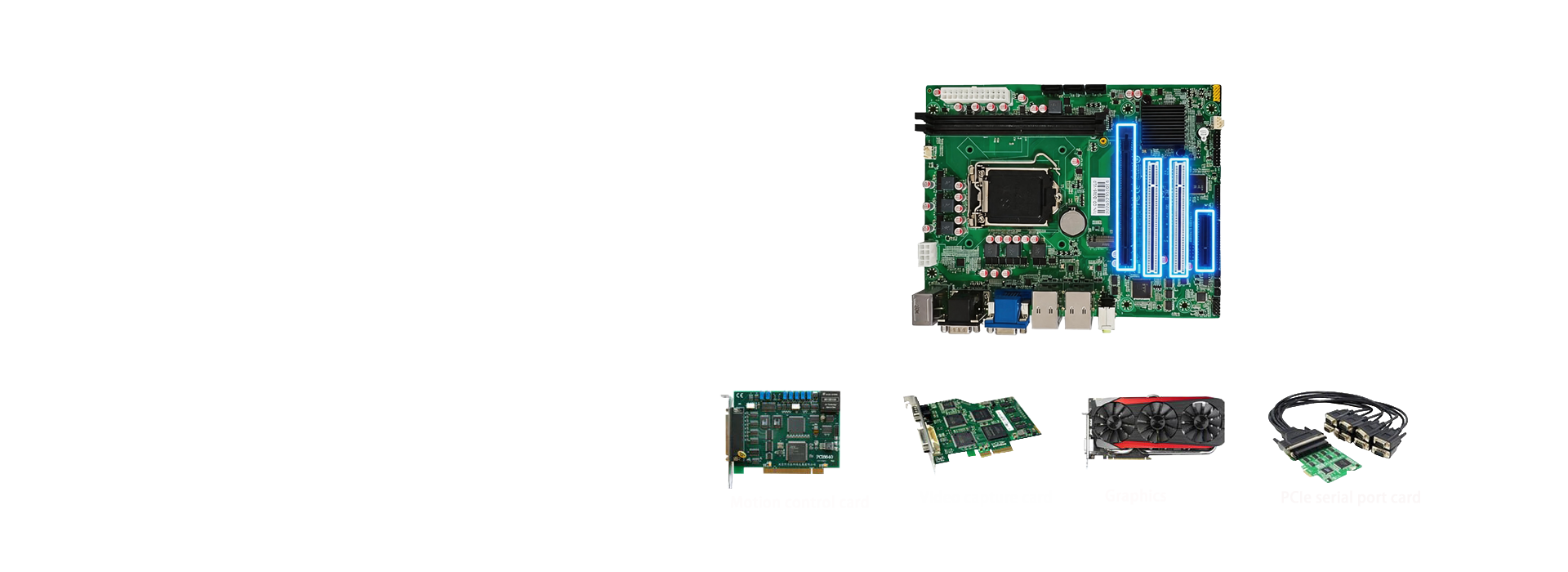

1 standard PCIe x16 slot, 1 standard PCIe x4 slot and 2 standard PCI slots

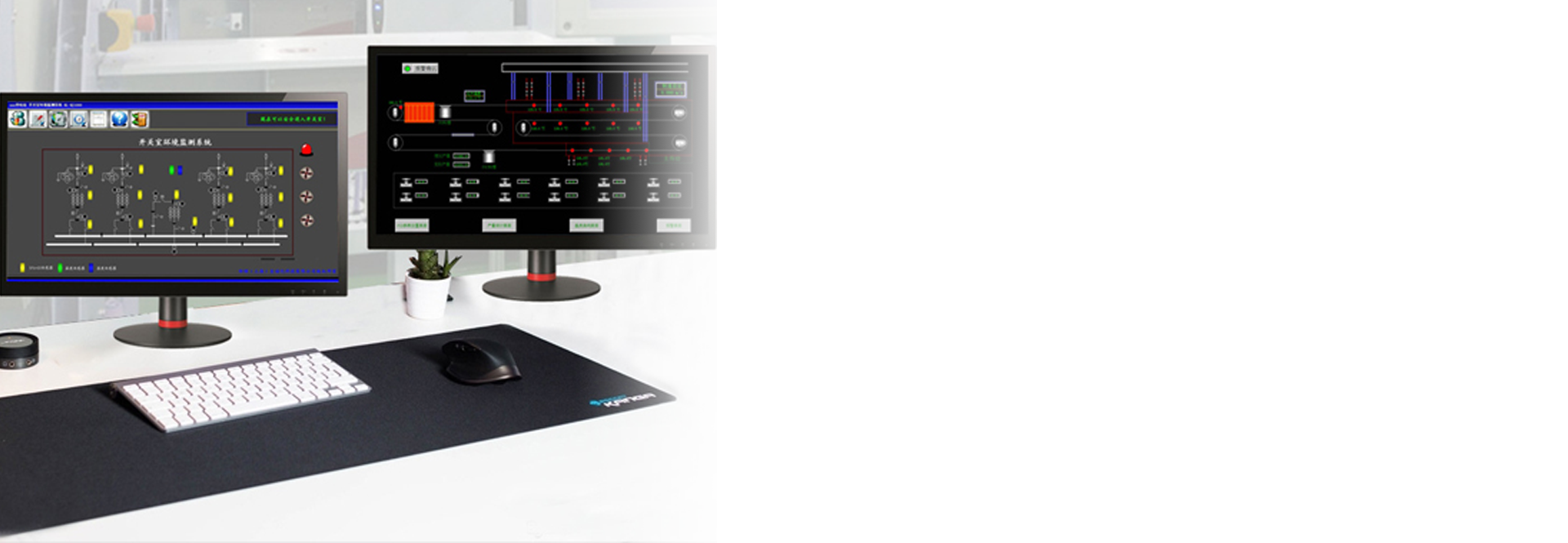

High-definition Image, Mirror & Extended Display

Equipped with VGA and HDMI high-definition ports, it supports dual-display output. Both mirror and extended display modes deliver smooth 4K playback with zero lag.

Gigabit Ethernet Port | High-speed Transmission

Gigabit network speed ensures fast and stable data transmission. It meets high network requirements for industrial IoT, cloud computing and other scenarios, delivering reliable network connection for devices.

PowerfPowerful Configuration to Meet Diverse Needsul Configuration

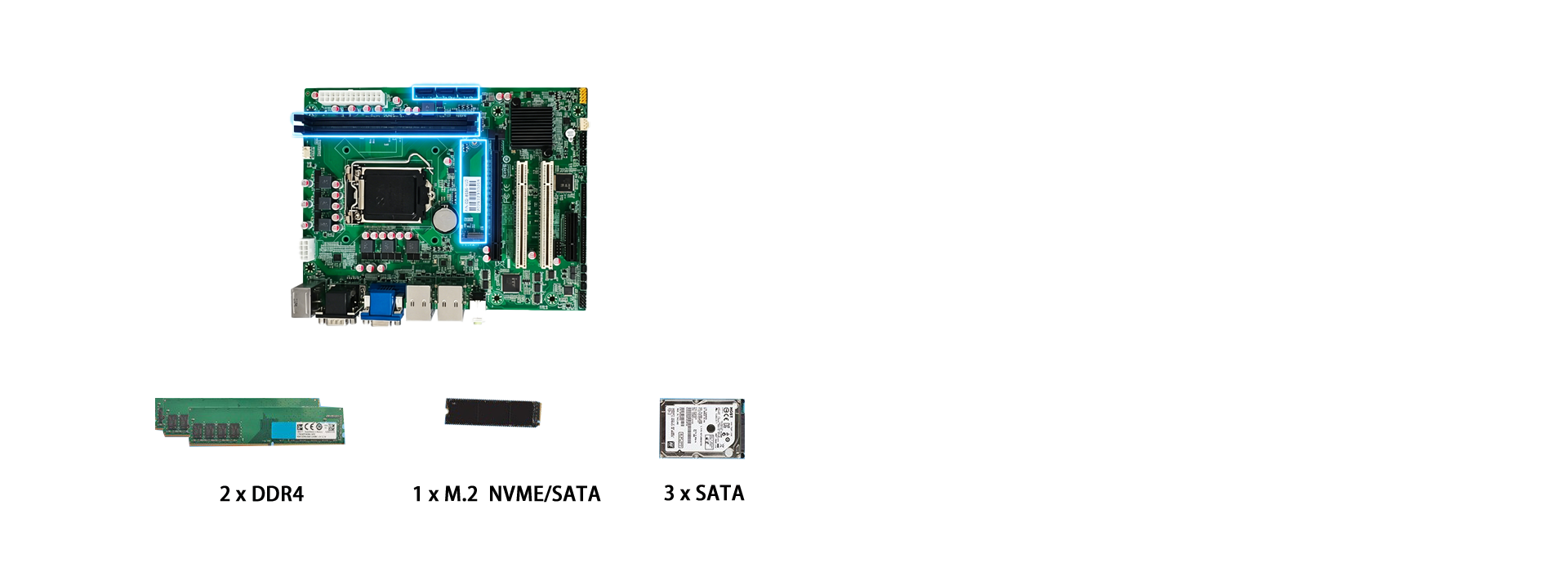

Flexible hardware architecture. Equipped with dual-channel DDR4 memory slots, it supports 2 DDR4 modules with a maximum capacity of 32GB.

Compatible with multiple operating systems

Supports mainstream systems including Win10, Win11 and Linux distributions, and is compatible with various configuration software. Please contact customer service if you need to install a specific system.

Product specifications

English Translation

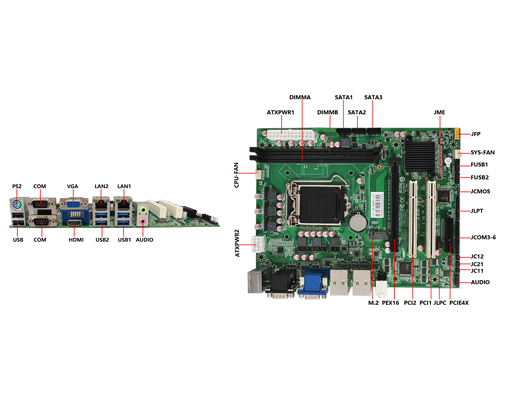

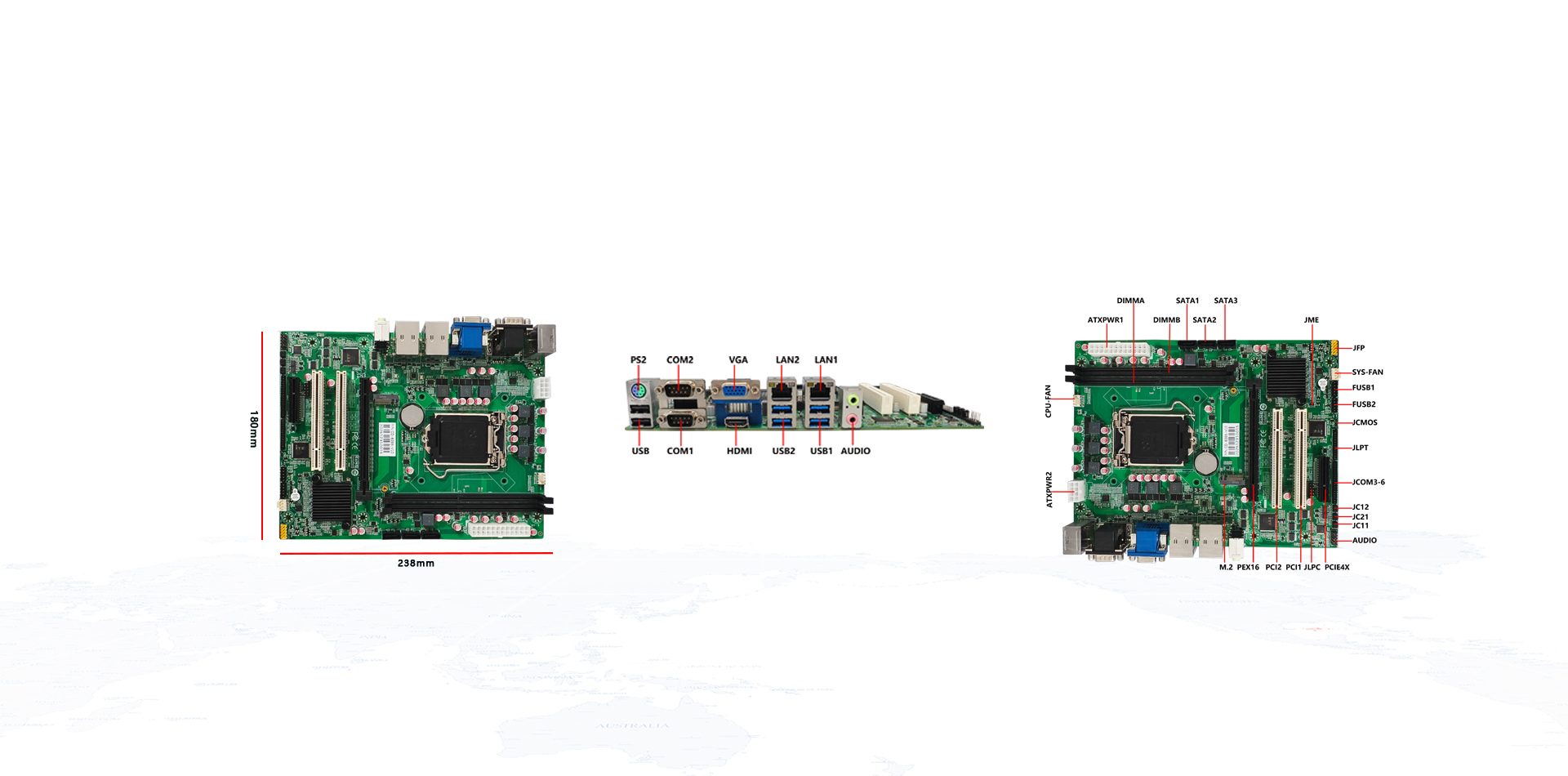

Motherboard Dimensions: 185mm (L) × 238mm (W)
CPU: LGA 1151 socket, supports 8th & 9th Gen Intel Core i7/i5/i3, Pentium and Celeron processors
Chipset: Intel B365
Power Supply:
  • 2×12PIN ATX, compatible with standard 24PIN ATX power input
  • 2×4PIN combined as 8PIN ATX CPU power input. It is recommended to select a higher wattage power supply according to actual CPU power consumption and system load.
Memory: 2×DDR4 DIMM slots, dual-channel supported; maximum capacity up to 32GB
Display Interfaces
  • 1×VGA: Resolution up to 1920×1200 @ 60Hz
  • 1×HDMI: Maximum resolution 4096×2160 @ 30Hz
Network: 2×LAN ports with RTL8111H Gigabit Ethernet controller
Audio:
Onboard ALC897 digital audio codec integrated with DAC, ADC and digital processing modules. It converts digital signals to analog signals and fully meets HD Audio output requirements.
  • 1×Audio port: Audio output (Green) and Microphone input (Pink)
  • 1×F_AUDIO header: Standard 9Pin (2×5Pin, 2.54mm) audio header
Storage
  • 3×SATA ports: Standard SATA 7PIN 3.0 interface, maximum transfer speed 6.0 Gbps
  • PCIe M.2 slot: Supports M.2 NVMe and PCIe protocols
USB
  • 2×Dual-layer rear USB 3.0 ports (Blue)
  • 1×Dual-layer rear USB 2.0 port (Black)
  • 2×FUSB headers: 9Pin (2×5Pin, 2.54mm) for external USB expansion
PS/2 Port: Supports keyboard and mouse
Front Panel Header: 1×JFP header (10Pin, 2×5Pin, 2.54mm) for power switch, power LED, HDD LED and reset switch
Power-on After Power Loss: 2Pin AT_ATX header (1×2Pin, 2.00mm). Install the jumper cap to enable power-on after power recovery.
Expansion Slots: 1×PCIe x4, 1×PCIe x16, 2×PCI slots
Fan Headers
  • 1×SYS-FAN: 4Pin (1×4Pin, 2.54mm) smart fan header with speed regulation and speed monitoring
  • 1×CPU-FAN: 4Pin (1×4Pin, 2.54mm) smart fan header with speed regulation and speed monitoring
Serial Ports:
6×COM ports support RS232 protocol. COM1 and COM2 are dual-layer DB9 ports, compatible with RS232 and RS485. COM3 to COM6 adopt 2×18Pin (2.0mm) pin headers.
Other Headers
  • JME header: For ME firmware maintenance and security control
  • JCMOS header: Short the pins to clear CMOS settings
  • JLPC header: Low-level debugging interface for LPC bus
  • JLPT header: Compliant with IEEE 1284 parallel port standard, used to expand LPT interface for old dot-matrix printers, inkjet printers, industrial devices, programmers and other parallel peripherals
Operating Environment
  • Operating Temperature: -20℃ ~ 60℃
  • Operating Humidity: 5% ~ 95% RH, non-condensing
BIOS: W25Q128JV
Watchdog: Programmable watchdog with hardware reset function (256 levels, 0~255 seconds). Supports power-on on boot and scheduled power-on.
Operating Systems: Compatible with Windows 10, Windows 11 and Linux
