Zhaoxin KX-U6780A

· KX-U6780A CPU

· DDR4-2666

· HDMI + VGA + LVDS

· 6 Serial Ports

· 4 USB Ports

· Dual Network Ports

· Power-on After Power Recovery Supported

·  Supports WiFi/4

·M.2 SATA/NVMe SSD

·3.5-inch 102mm x 146mm

Zhaoxin KX-U6780A

Product Features

  • KX-U6780A
  • DDR4 memory
  • SATA/NVME
  • HDMI/VGA/LVDS
  • 2LAN
  • 6USB
  • 6COM
  • WIN7/10 Kylin OS

Product Details

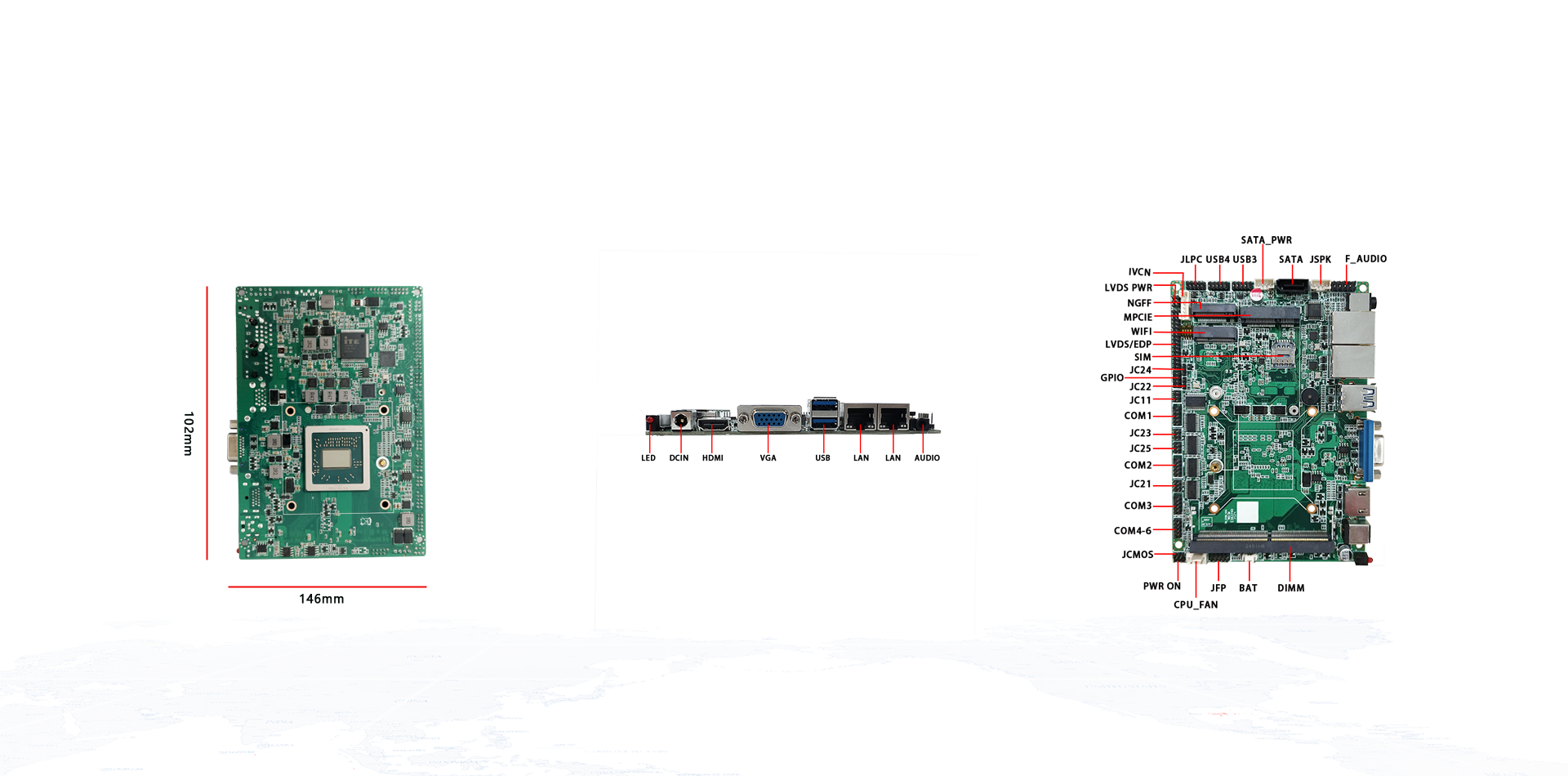

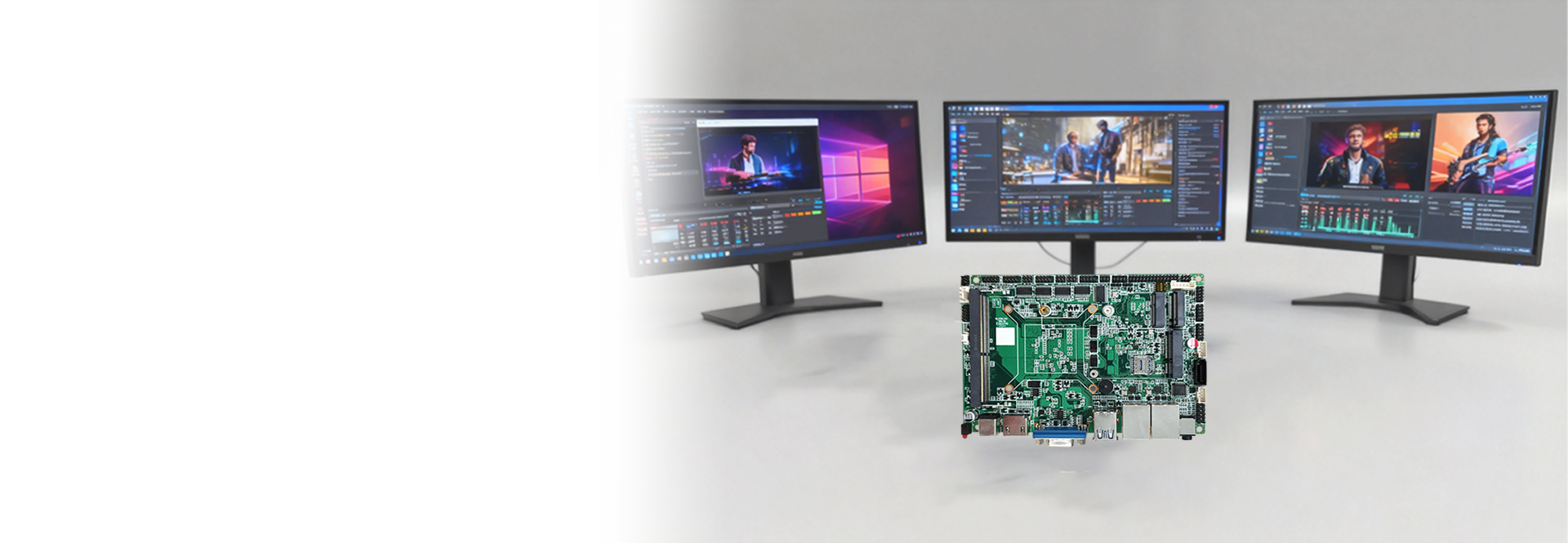

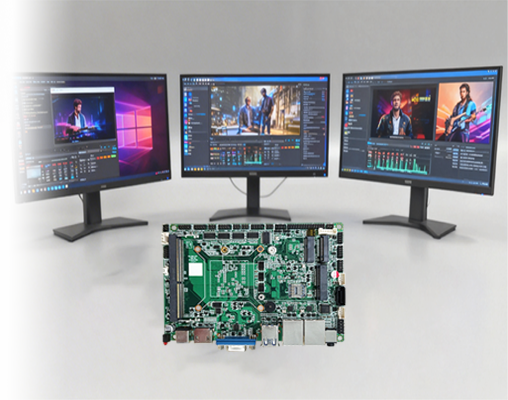

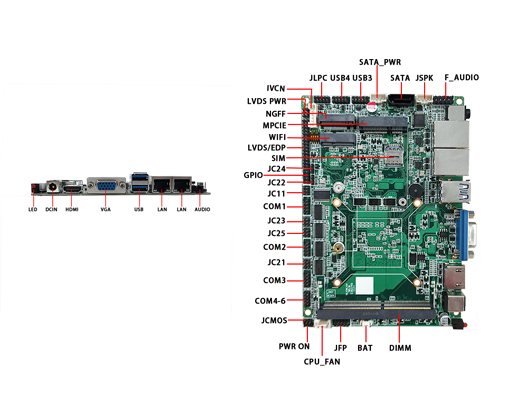

Rich peripheral interfaces including VGA, LVDS and HDMI, supporting triple-display output.

Onboard: 6 USB, 6COM and 2 LAN

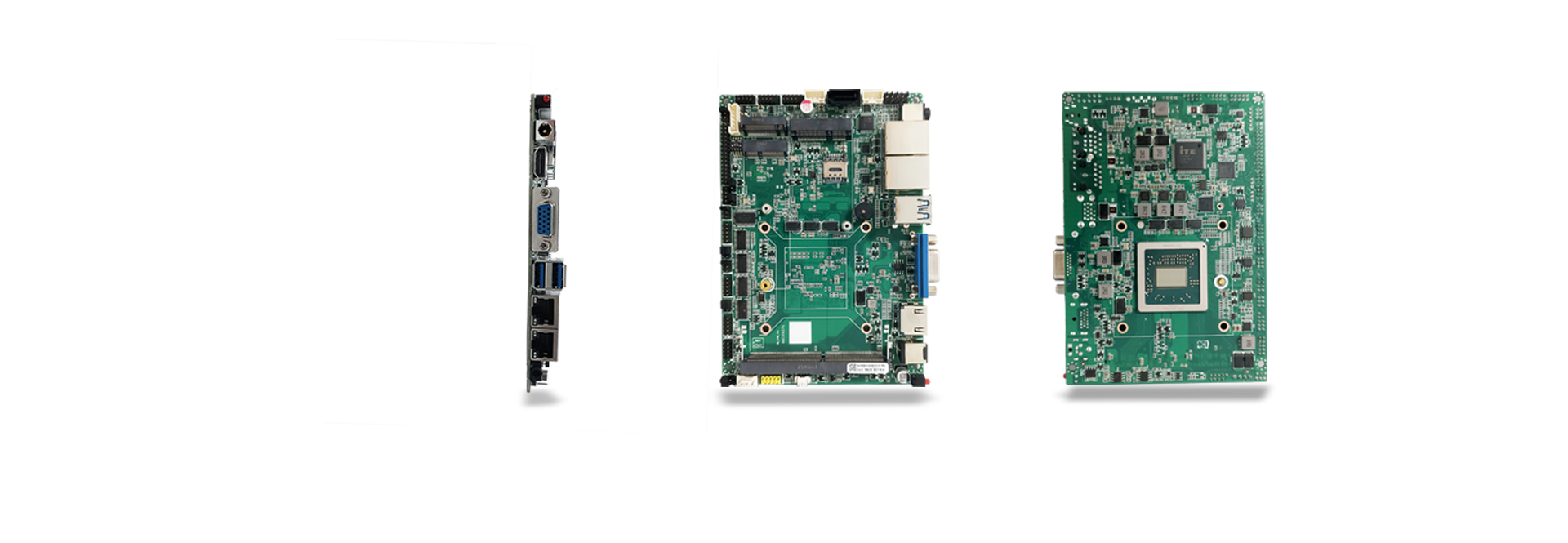

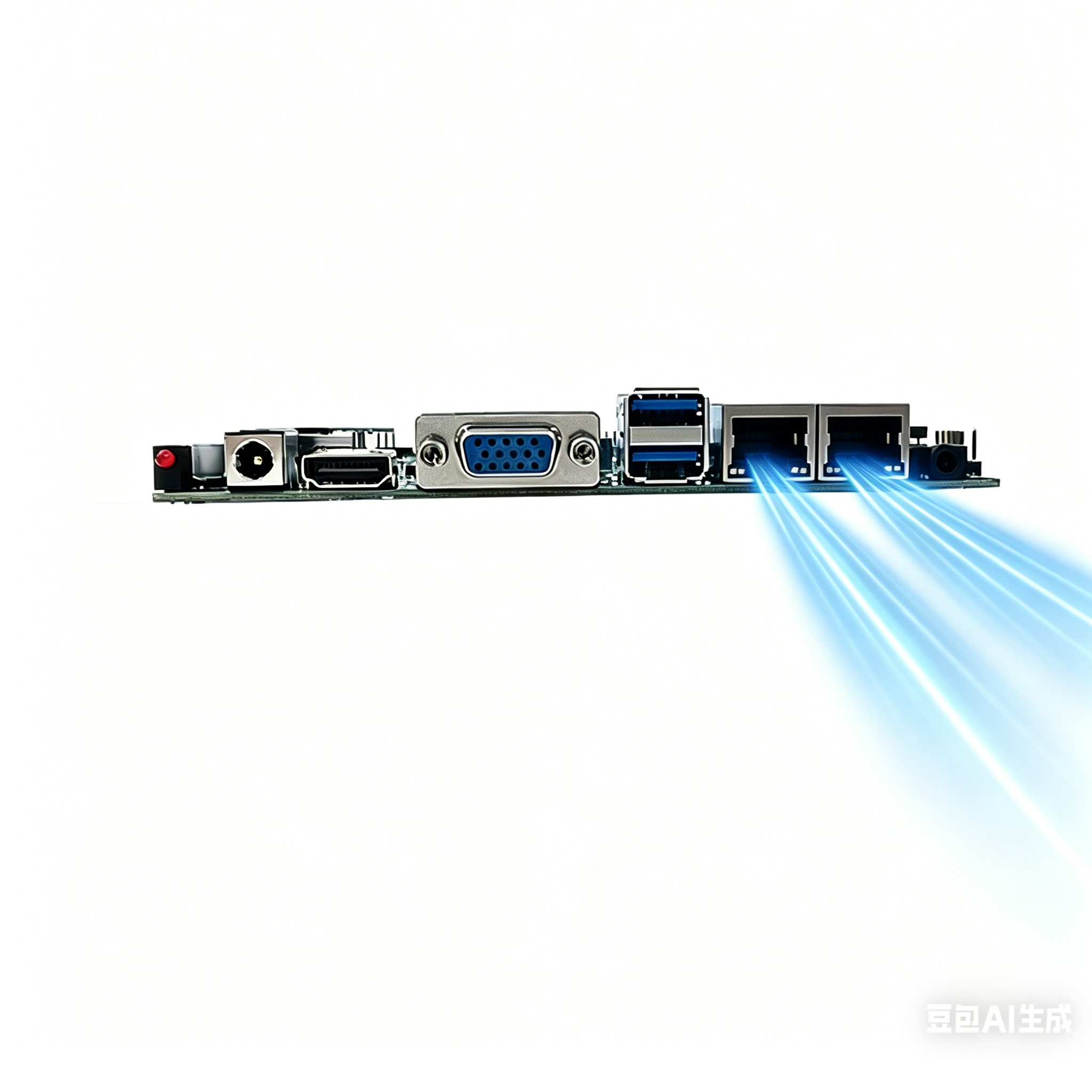

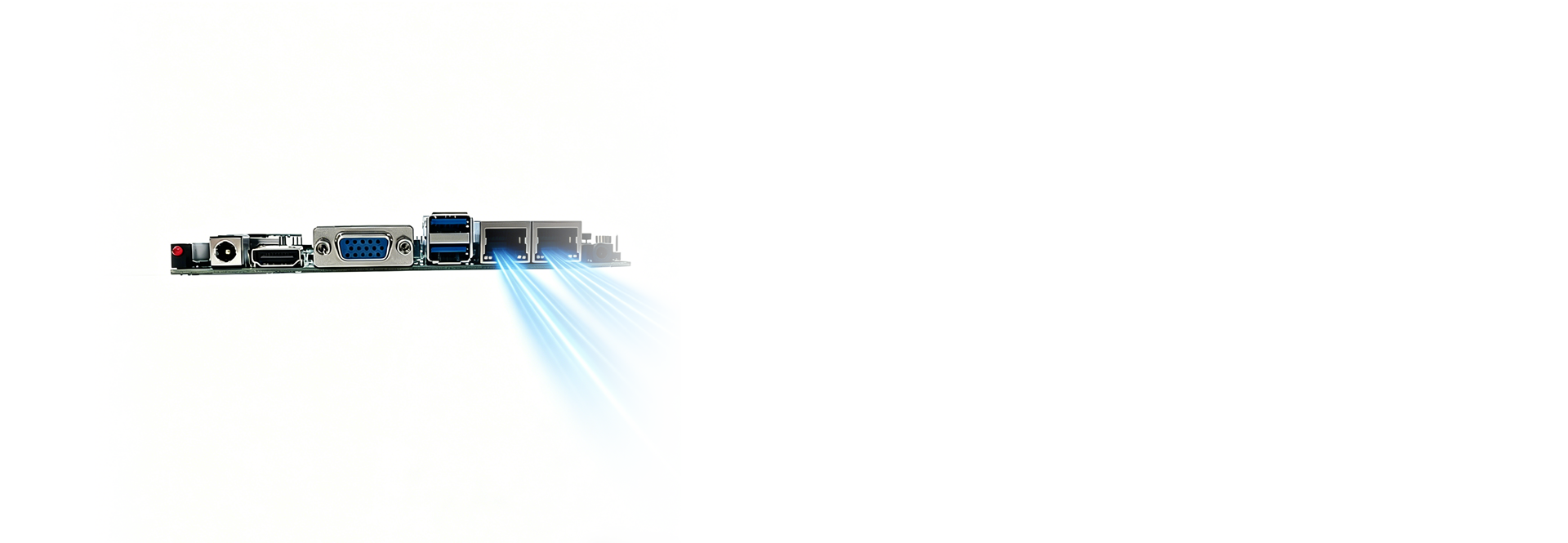

Dual Gigabit Ethernet Ports

Gigabit RJ45 Ports | Wire-Speed | Low Latency | Stable & No Dropped Connections Onboard Realtek RJ45 Gigabit Ethernet port with auto-negotiation for 10/100/1000Mbps, plug-and-play and stable connection without disconnection.

High-speed Transmission

Comes with VGA, HDMI and optional LVDS HD interfaces, supporting triple-display output. Clone or extended display enables lag-free smooth 4K high-definition playback.

Compatible with multiple operating systems

Supports mainstream systems including Win7, Win10 and Linux distributions, compatible with various configuration software. Contact customer service if you need a specific system installation.

Product specifications

ItemParameterMainboard Dimension146mm×102mmCPU ProcessorZhaoxin KX-U6780A, 8-Core, 2.7GHz~3.0GHzPower Supply1×DC jack

Supports 12V or 19V input

Optional modification to 1×4Pin ATX power headerMemory Support1×DDR4 slot (2133/2400/2666MHz), max up to 32GBDisplay Output1×VGA: Max resolution 1920×1080@60Hz

1×HDMI: 4K 4096/3840×2160@30Hz

1×LVDS/eDP: 1920×1080@60Hz (30Pin / 2×15Pin, pitch 2.0mm)

1×INCN: LVDS/eDP backlight control header (6Pin, pitch 2.0mm)

1×JP: LVDS/eDP operating voltage selection header (3Pin, pitch 2.0mm)Ethernet2×RJ45 LAN ports: Realtek RTL8111H Gigabit NIC, PXE boot & Wake-on-LAN supported

1×mPCIe slot: For 4G module

1×Onboard WiFi: WiFi + Bluetooth compatibleAudioOnboard Realtek ALC897 HD Audio codec, 6-CH Hi-Fi audio

1×Audio out jack

1×F_AUDIO header (9Pin 2×5Pin, pitch 2.54mm, standard front audio)

1×JSPK amplifier header (4Pin, pitch 2.0mm)Storage1×SATA 3.0 port

1×SATA PWR header: 5V/12V power output for HDD (4Pin, pitch 2.0mm)

1×NGFF slot: Auto-switch between PCIe & SATA protocolUSB1×Dual-layer rear USB3.0 port (blue)

2×FUSB headers for external USB expansion (9Pin 2×5Pin, pitch 2.0mm)Front Panel & Control1×FPANEL header: Power switch, PWR LED, HDD LED, Reset (9Pin 2×5Pin, pitch 2.0mm)

1×ON_PWR header: Power-on after AC recovery (3Pin, pitch 2.0mm)

1×JCMOS header: CMOS clear / discharge (3Pin, pitch 2.0mm)Serial Port6×JCOM headers for standard RS232

COM1 & COM2 configurable for TTL/RS485/RS232; Pin9 of COM1/COM2 selectable as RI/5V/12V (default: RI)Operating EnvironmentOperating Temp: -20℃ ~ 60℃

Humidity: 5%~95% RH, non-condensingBIOS FunctionPower-on boot, scheduled power-on, remote power on/off, auto hardware detectionWatchdogProgrammable hardware watchdog with auto-reset, 256 levels (0~255s adjustable)Supported OSWin7 / Win10 / Linux / Domestic Chinese OS and others
