Rugged Touch Mobile Computer

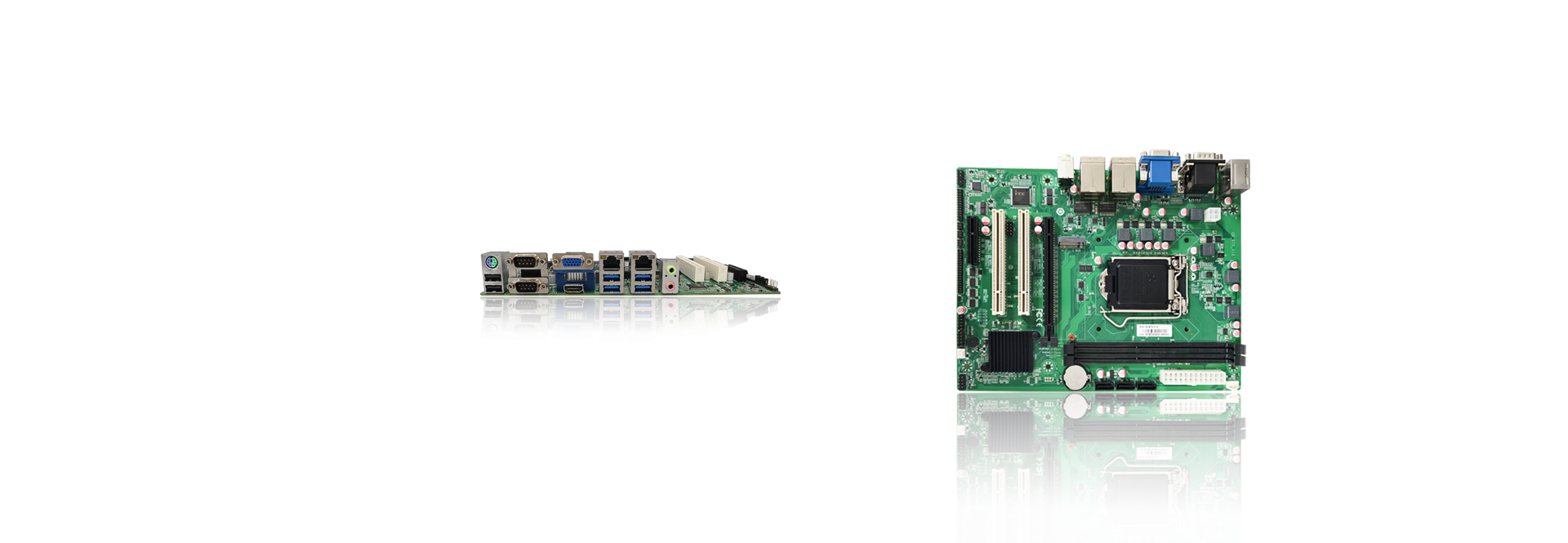

B75 motherboard

  • LGA1155 socket, compatible with 2nd & 3rd Gen Intel CPUs
  • 2 DDR3 memory slots
  • HDMI + VGA video ports
  • Dual Ethernet ports
  • 6 USB ports
  • 6 serial ports
  • Audio support
  • PS2 interface support
  • WiFi & 4G supported
  • 1 PCIe X16, 2 PCI slots, 1 PCIe X4 slot
B75 motherboard

High-performance large-capacity storage system

Lanodo's customized products are widely used in various industries including logistics, power, transportation, agriculture, textiles, geology, petrochemicals, and natural gas.

  • Android 12
  • 8-core 2.0GHz
  • 5.5-inch HD Screen
  • 4G+64G
  • 4G Full Netcom
  • IP68-level Protection
  • NFC/RFID Recognition
  • Equipped with Various Sensors

Product Details Display

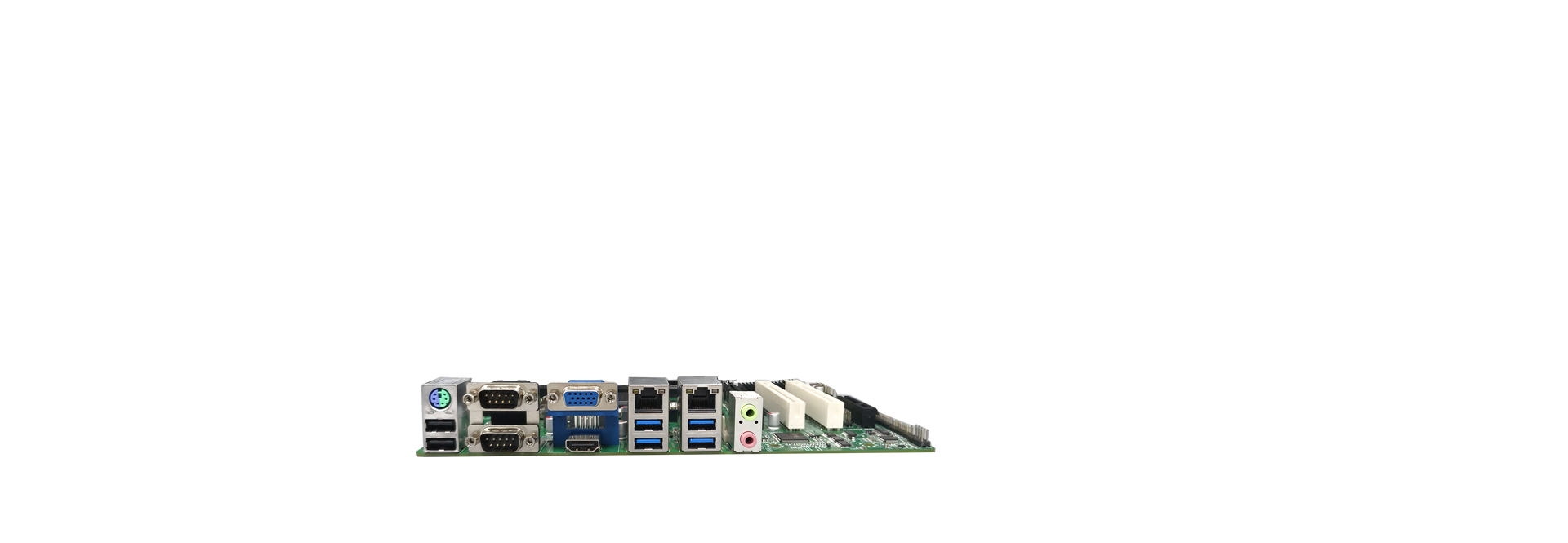

Rich peripheral interfaces, dual-display supported via VGA/HDMI
Onboard 6 USB ports, 6 serial ports, dual network ports, PCIe x16, PCIe x4 and dual PCI expansion interfaces

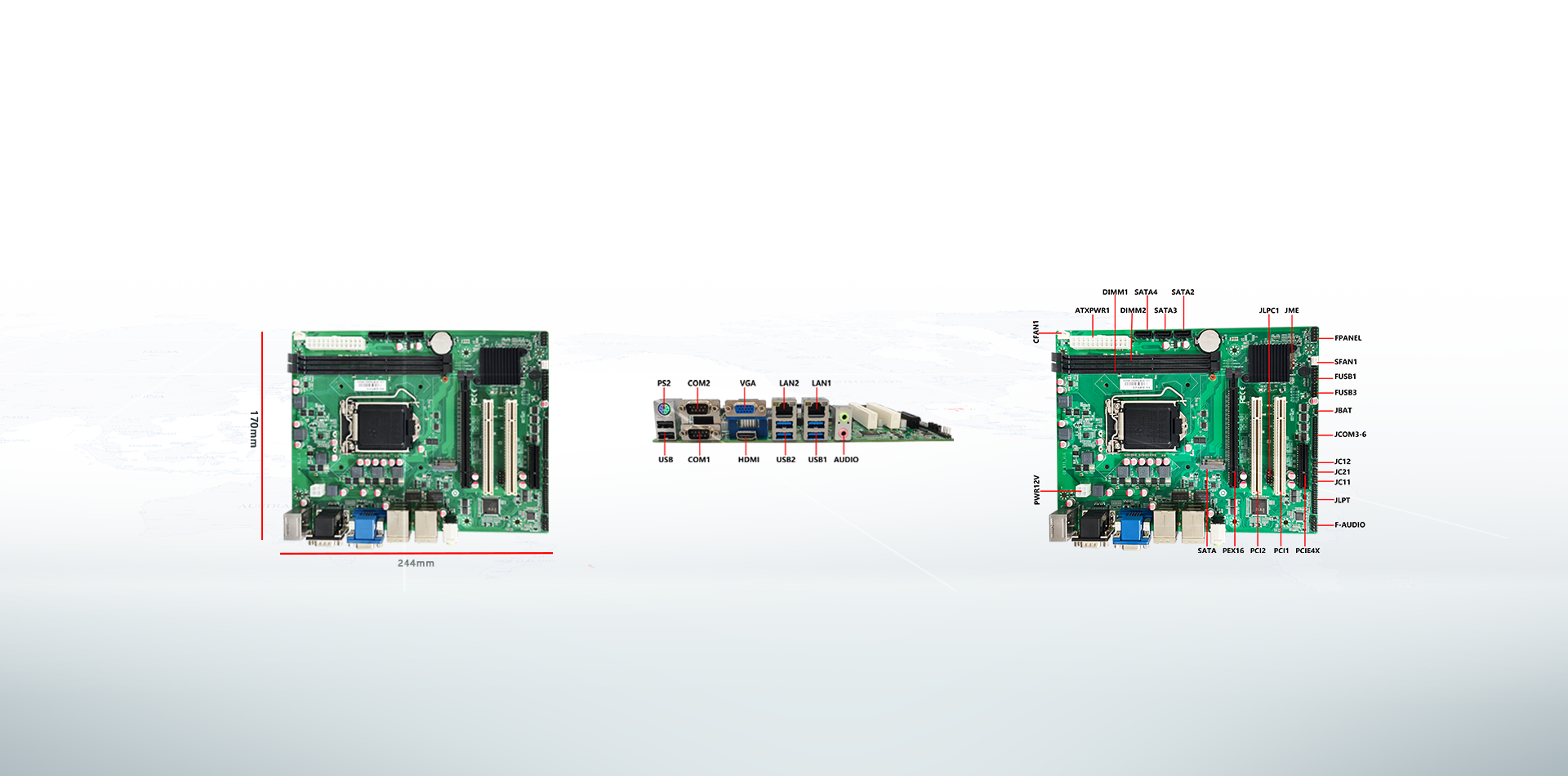

Product Function Diagram Product Function Diagram

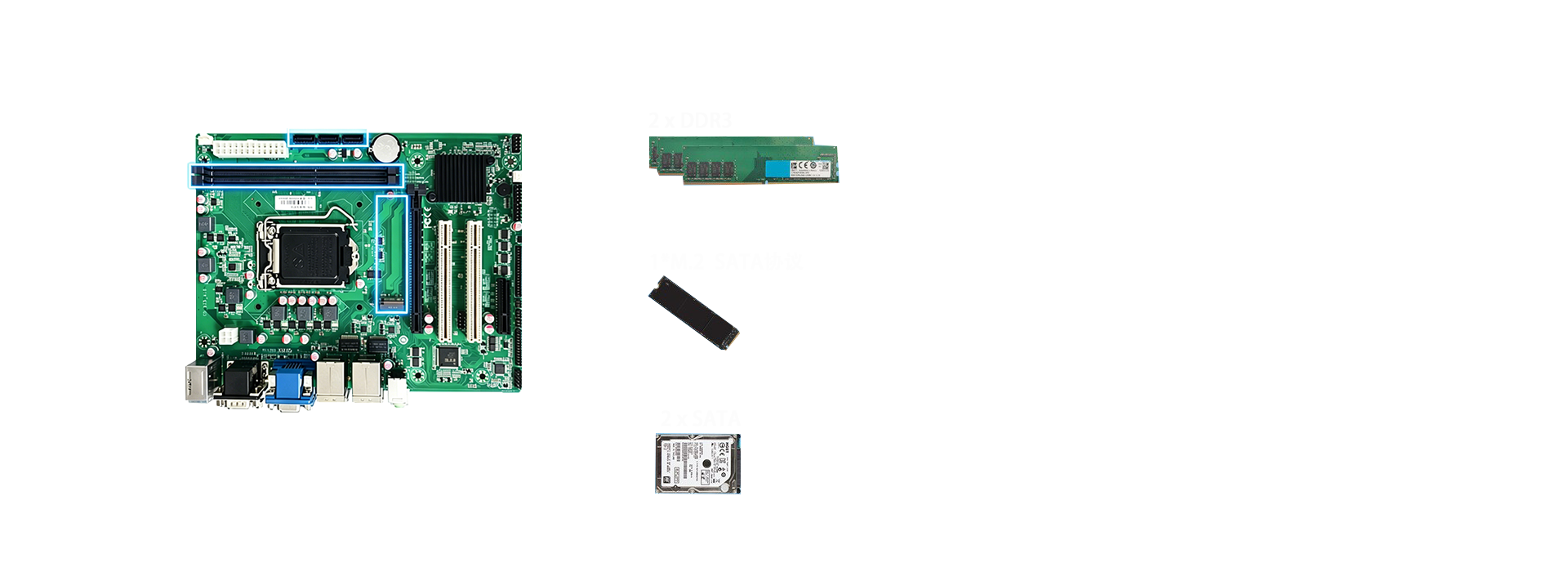

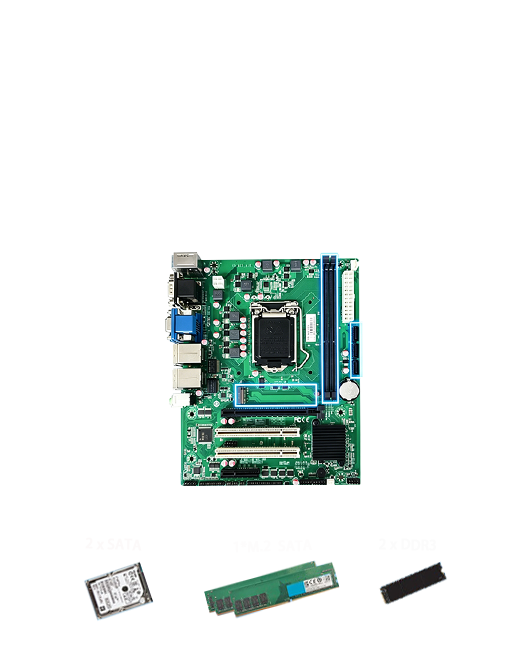

Powerful Configuration, Meet Diverse Needs

Flexible hardware architecture with dual-channel DDR3 memory slots, supporting 2 DDR3 memory modules up to 16GB maximum capacity. Delivers powerful performance boost, plug-and-play without complicated debugging.

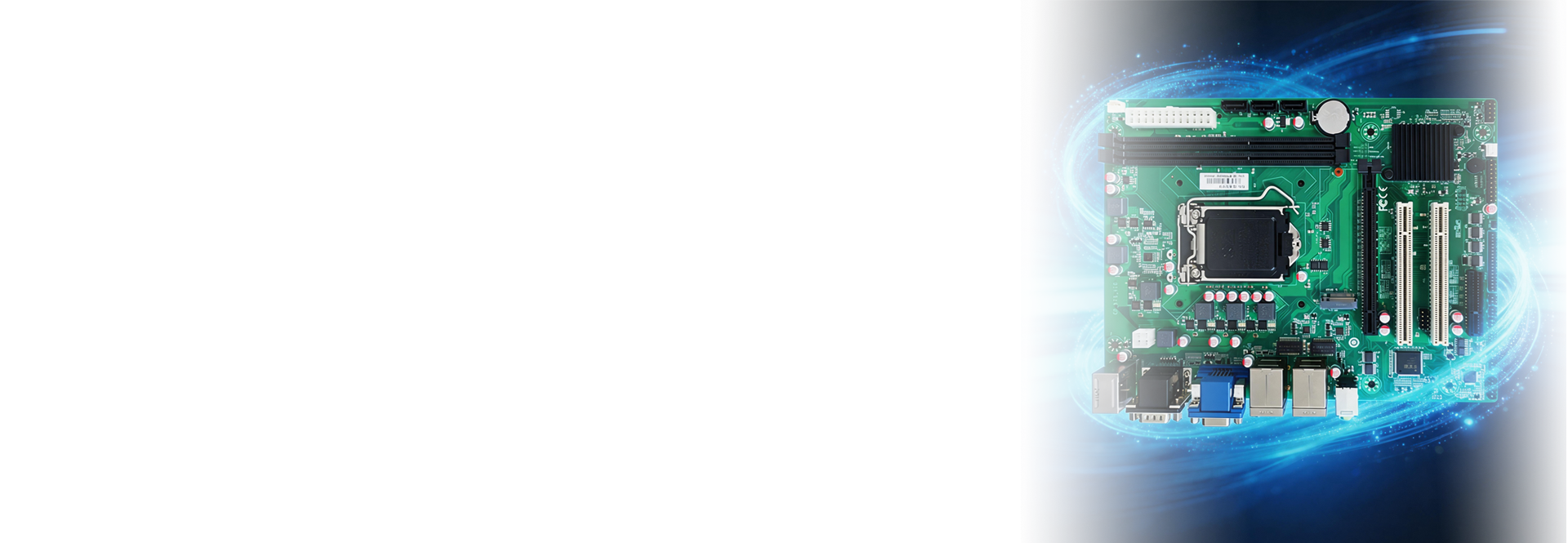

Multiple expansion slots, flexible expansion

Equipped with 1 standard PCIe x16 slot, 1 standard PCIe x4 slot and 2 standard PCI slots, it fully meets expansion demands in various industrial fields.

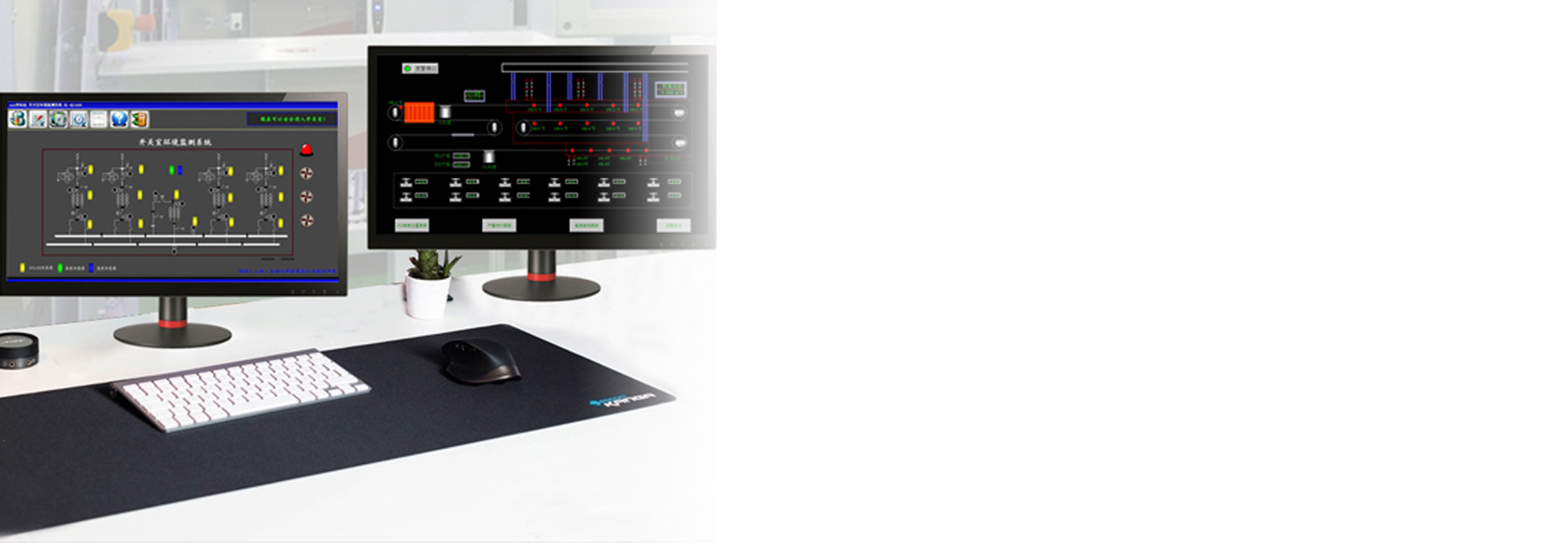

High-definition image quality, simultaneous & split display

Onboard HDMI+VGA dual video outputs, supporting dual-screen clone and extended display modes. Compatible with traditional VGA monitors and high-definition HDMI screens, plug and play without adapters or extra settings.

Gigabit Ethernet Port     High-speed Transmission

Gigabit network transmission speed ensures fast and stable data transmission. It caters to high-demand network scenarios including industrial IoT and cloud computing, delivering reliable support for device networking

Compatible with multiple operating systems

Supports mainstream systems including Win7, Win10 and Linux distributions, compatible with various configuration software. Please contact customer service if you need to install a designated system.

Product specifications
  • Basic Specifications
  • Processor:
    MT8765(4*A53 1.5GHz)
    MT8768(8*A53 2.0GHz)
    MT8786(2*A75 2.0GHz+6*A55 1.8GHz)
  • System:
    Android
  • Memory:
    1G/2G/4G/6G/8G DDR
  • Storage:
    8G/16G/32G/64G/128G ROM
  • MicroSD Card:
    Supports up to 128GB
  • SIM Card:
    Single SIM/Dual SIM Dual Standby
  • Display
    3.97 inches/5.0 inches/5.45 inches/5.99 inches; HD/HD+
  • Touch:
    Single-point/5-point/10-point touch; supports various modes like gloves, wet hands, handwriting, etc.
  • Camera:
    2M/5M/8M/13M/16M/21M;PDAF
  • Network:
    4G LTE
  • WIFI:
    IEEE 802.11 ac/a/b/g/n; supports 2.4GHz/5GHz dual-band Wi-Fi
  • Bluetooth:
    BT5.0
  • GNSS:
    GPS/BeiDou/Galileo/GLONASS/QZSS/AGPS
  • NFC:
    13.56MHz; supports various standards including ISO14443A/B, ISO15693, MIFARE, FeliCa, etc.
  • Sensors:
    G-sensor/gyroscope/magnetic sensor/distance/light sensor/temperature sensor/pressure sensor
  • Charging:
    Supports PE, PD fast charging, fast charging power 18W
  • Special Features
  • Scanner:
    Supports mainstream scanners N6603/N6703/N6803/SE4710/CM60/CM30/T20, etc.
  • RFID:
    Supports mainstream ultra-high-frequency modules such as Impinj E710/Fudan Microelectronics FM13RD1616E, etc.
  • High Precision Positioning:
    Supports high-precision positioning modules TAU1312/Quectel_L26-DR/Quectel_LC29H, etc.
  • Identity Recognition:
    Supports public security fingerprints, ID card hardware modules, etc.
  • Encryption Processing:
    Supports PSAM card, onboard national cryptographic IC, etc.
  • Physical Keyboard:
    Supports 9-grid, full keyboard, etc.
  • Dock:
    Supports Type-C, DC plug charging
  • Custom Highlights:
    IP68 protection level, dustproof, and waterproof; suitable for most scenarios
    Resistant to a 1.5-meter drop on concrete, rugged, and durable
    Powerful electrostatic protection, safe and reliable (±8 KV contact discharge, ±15 KV air discharge)
  • Application Scenarios:
    Suitable for retail, logistics, pharmaceuticals, apparel, warehousing, and power industries, providing users with efficient work experiences and meeting the needs of various industries.
