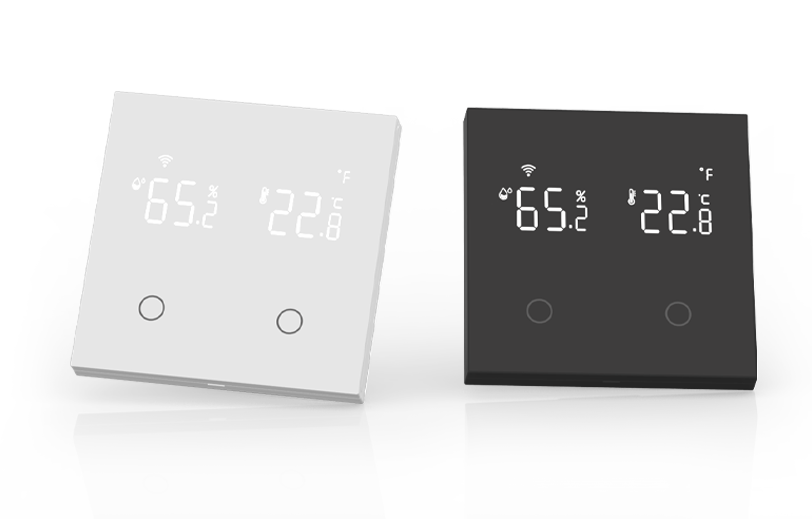

Smart ZigBee 2 Gang Wifi Light Wall Switch Touch

The smart temperature and humidity scene control panel is a core smart home device integrating IoT, AI voice interaction and scene linkage functions.
Users can control lights, electrical appliances and other smart devices remotely or locally via mobile App, voice commands or physical touch buttons. It supports multi-device connection, task scheduling and environment sensing, realizing home automation and energy-saving management.

Smart ZigBee 2 Gang Wifi Light Wall Switch Touch

Core Functions

1:One-stop smart home control solution with WiFi-enabled smart breakers, sockets & switches. Easy to build whole-house smart system for global market.
2:Voice control with Alexa & Google Assistant, remote control & real-time status check via Tuya App. Hands-free smart home control anytime anywhere.
3:Professional WiFi smart dimmer switch for 12V LED lights, wide compatible with various bulbs. Ideal for home, hotel, office and multiple lighting scenarios.
4:Standard wall-mounted design, easy installation, directly replace traditional switches. Universal smart breaker for simple and fast smart home upgrade.
5:Globally certified, durable and safe for high-power devices. Supports OEM/ODM customization, reliable smart home solutions for worldwide markets.

  • LightsON/OFF
    LightsON/OFF
  • Temperature
    Temperature
  • Wireless
    Wireless
  • Humidity Measurement
    Humidity Measurement
  • Weather Monitoring
    Weather Monitoring
  • Accurate Sensor
    Accurate Sensor
  • Max/Min Readings
    Max/Min Readings
  • App-Steuerung
    App-Steuerung

WLAN TOUCH LIGHT SWITCH

Enjoy the life of the future

Voice control

You can easily turn off the living room light by talking without getting up.

Remote control

Real time viewing of device status through a mobile app, remote switching of lights or appliances(requires internet connection)

Time Scheduling

Timing lights switch:single/repeat/delay/cycle

The smart temperature and humiditylight switch can control 1-4 lights

Control Together

Share information with your family and enjoy a smart life together.

Installation method Installation method

Installation method

Installation method Installation method

Display Description and Wiring Diagram

Product specifications
  • Product Specifications
  • Switch Type:
    Live & Neutral Wire Type
  • Button Mode:
    Touch
  • Display Mode:
    LED Display
  • Protection Grade:
    IP20
  • Housing Material:
    Flame-retardant PC+ABS V0 fire-rated material
  • Mounting Hole Spacing:
    60mm
  • Installation Method:
    Standard installation for EU back box or 86-type back box
  • Overall Dimension:
    86×86×36mm
  • Temperature Accuracy:
    ±1℃
  • Operating Temperature:
    -10~60°C
  • Operating Humidity:
    0%~99.9% RH
  • Ambient Temperature:
    -5~60°C
  • Ambient Humidity:
    5%~95% RH (Non-condensing)
  • Self-power Consumption:
    <2W
  • Power Voltage:
    100-240V AC, 50~60Hz (Global Universal)
  • Load Power:
    Single channel ≤2000W (Resistive Load)
